NIBCO INC NL99F4A K595S6R66LL 1 SW BALL 3PC LKG LEV SS

Product Description

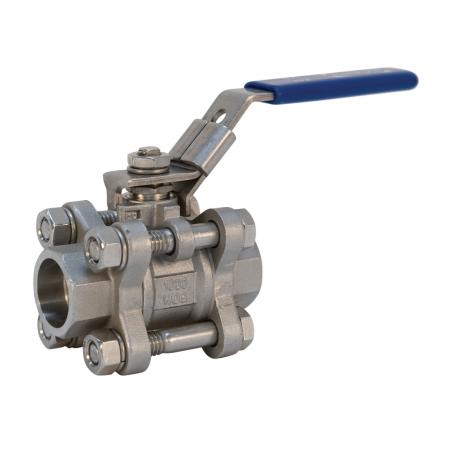

The NIBCO INC NL99F4A is a reliable ball valve from the K-595-S6-R-66-LL series. This three-piece valve features a nominal size of one inch and a socket weld design. It supports a pressure rating of one thousand psi and is suitable for media such as water. The valve includes a locking lever handle actuator for enhanced control.

• Pressure rating: 1000 psi
• Body and ball material: Stainless steel
• Temperature rating: 400 degrees Fahrenheit

Product Highlights

This valve is essential in various applications, including process piping and utility services. Its blowout-proof stem ensures safety and durability.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923793935

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: Socket Welded
• Inlet to Outlet Length: 3.62 inches
• Media: Water
• Nominal Size: 1 inch
• Orifice Size: 1 inch
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: K-595-S6-R-66-LL
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 2.95 inches
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
