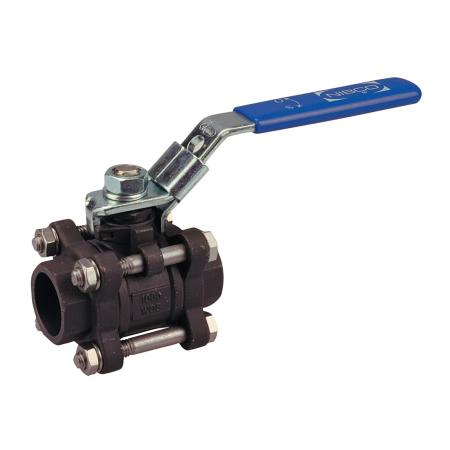

NIBCO INC NL99E48 K595CSR66LL 3/4 SW 3PC BALL LKG LEV CS

Product Description

The NIBCO INC NL99E48 is a three-piece ball valve designed for socket weld applications. It features a nominal size of three-quarters of an inch and is rated for a pressure of one thousand psi. This valve is suitable for media such as water and operates up to four hundred degrees Fahrenheit. The valve includes a locking lever handle for secure operation and has a stainless steel ball for durability. The carbon steel body provides strength while the 316 stainless steel trim enhances corrosion resistance.

• Three-piece construction for easy maintenance
• Pressure rating of one thousand psi
• Stainless steel trim for enhanced longevity

Product Highlights

This valve is ideal for process piping, utility service, and some chemical applications. It meets the standards of MSS SP-110 and comes with a five-year limited warranty.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 3-Piece

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Nominal Size: 3/4 in
• Orifice Size: 0.81 in
• Pressure Rating: 1000 psi
• Temperature Rating: 400 deg F
• Softgoods Material: PTFE
• Inlet to Outlet Length: 3.03 in
