NIBCO NL99E46 K595CSR66LL 1/2 SW 3PC BALL LKG LEV CS

Product Description

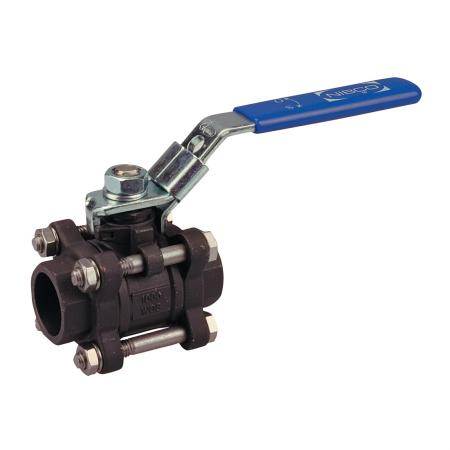

The NIBCO NL99E46 K595CSR66LL 1/2 SW 3PC Ball Valve is designed for utility service, process piping, and certain chemical applications. It has a pressure rating of 1000 psi and a temperature rating of up to 400 degrees Fahrenheit. This ball valve features a stainless steel ball and stem, ensuring durability and a long lifespan.

• Valve pressure rating 1000 psi
• Blowout-proof stem
• Stainless steel ball and stem

Product Highlights

The NIBCO K595CSR66LL Ball Valve is intended for optimal performance in utility services and certain chemical applications. It includes a locking lever handle actuator and a full port type, guaranteeing efficient flow control.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: K595CSR66LL

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Domestic/Import: Import
• End Style: Socket Welded
• Inlet to Outlet Length: 2.76 inches
• Media: Water
• Nominal Size: 1/2 inch
• Orifice Size: 0.56 inch
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: K-595-CS-R-66-LL
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
