NIBCO INC NL99E4A K595CSR66LL 1 SW 3PC LKG LEV CS

Product Description

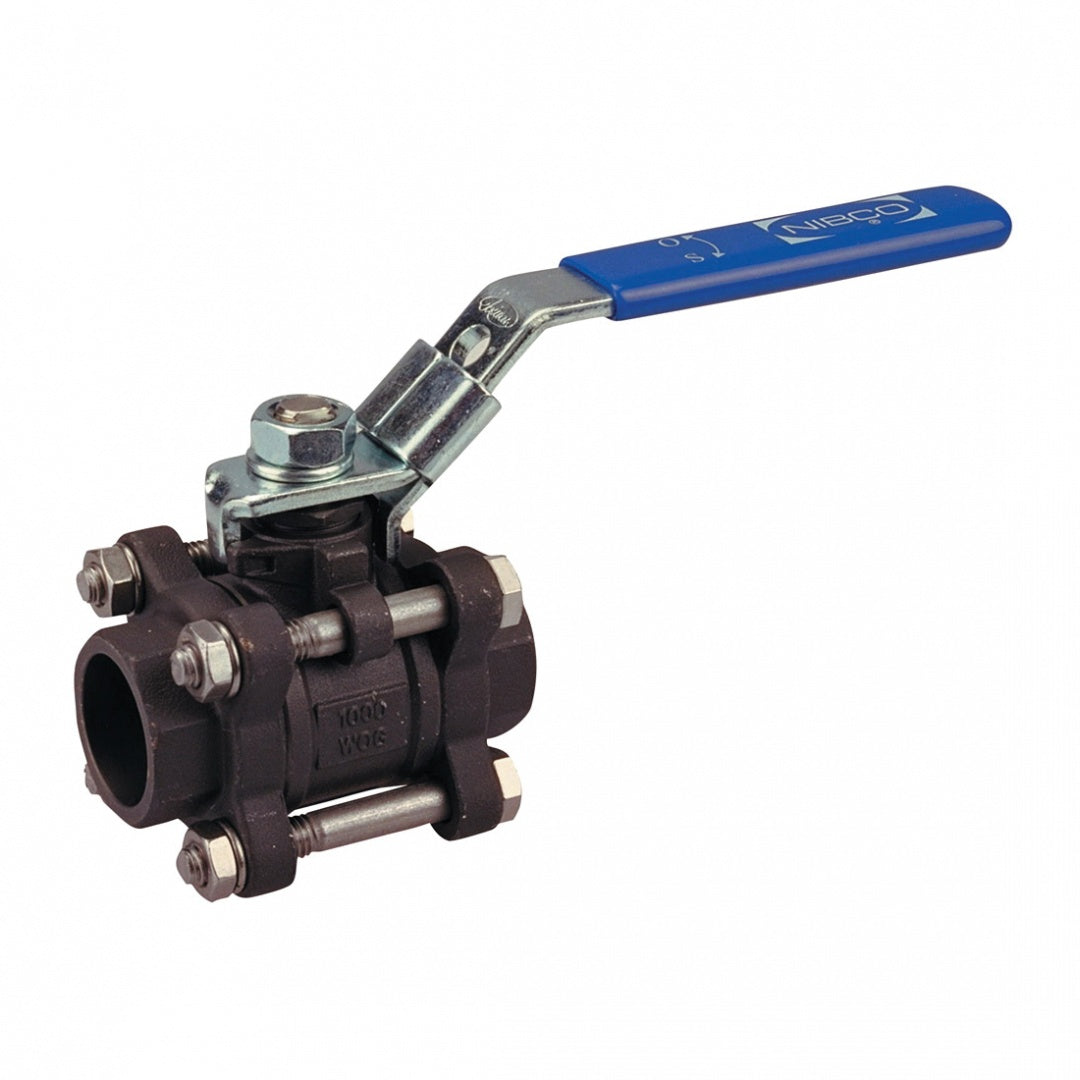

NIBCO INC NL99E4A is a three-piece ball valve that features a one-inch nominal size and socket weld end style. It is rated for a pressure of one thousand psi and operates at temperatures up to four hundred degrees Fahrenheit. The valve is suitable for water media and has a stainless steel ball for durability.

• Three-piece design for easy maintenance
• Locking lever handle actuator for secure operation
• Full port design for maximum flow

Product Highlights

This valve is ideal for use in process piping, utility services, and some chemical applications. It is compliant with MSS SP-110 standards and comes with a five-year limited warranty.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: K-595-CS-R-66-LL

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Domestic/Import: Import
• End Style: Socket Welded
• Inlet to Outlet Length: 3.62 inches
• Media: Water
• Nominal Size: 1 inch
• Orifice Size: 1 inch
• Port Type: Full
• Pressure Rating: 1000 psi
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
