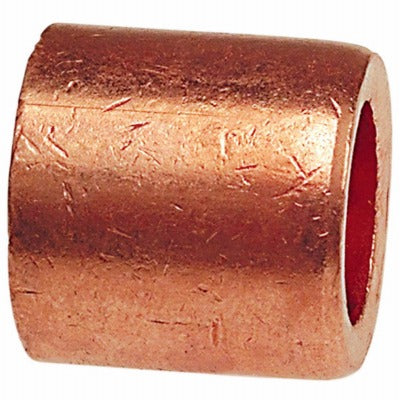

Nibco Inc W01930D Flush Bushing 3/4 X 1/2 Inch Ftg X C

Product Description

The NIBCO INC W01930D is a lead-free copper flush bushing designed to reduce line size within a sweat-solder piping system. It features a male solder end (FTG) on the 3/4 inch side and a solder cup (C) on the 1/2 inch side, conforming to the C618 standard. This fitting is sized at 3/4 inch by 1/2 inch and is sold in a package of 10. Licensed plumbers and pipefitters install this type of fitting during new construction, remodel, and repair work wherever a copper line must be stepped down in diameter without the use of a coupling.

This flush bushing is suited for residential and light commercial plumbing and hydronic heating applications where copper sweat connections are required. Because the fitting sits flush inside the socket of a standard fitting, it eliminates the need for an additional coupling when reducing between 3/4 inch and 1/2 inch copper lines. Its lead-free construction meets potable water requirements under current plumbing codes.

Key Features

• Lead-free construction — compliant with potable water and plumbing code requirements
• FTG x C end configuration — male solder end seats inside a standard fitting socket for a low-profile reduction
• Reduces 3/4 inch to 1/2 inch copper line in a single fitting
• Conforms to ASME B16.22 / C618 standard for wrought copper solder-joint fittings
• Sold in a package of 10 units

Compatibility

Designed as an OEM-style replacement and standard fitment for 3/4 inch by 1/2 inch copper sweat piping systems in residential and light commercial plumbing and hydronic applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter using standard sweat-soldering tools including a torch, flux, and lead-free solder. Shut off water supply and fully drain the affected line before cutting or fitting. Follow local plumbing codes and IPC requirements for joint preparation, flux application, and solder type. Do not apply heat to a fitting that is still wet or under pressure.

Technical Specifications

• Inlet Size: 3/4 inches
• Outlet Size: 1/2 inches
• End Connection: FTG x C (Male Solder x Solder Cup)
• Material: Copper
• Lead-Free: Yes
• Standard: C618
• Package Quantity: 10 per package
• Weight: 0.96 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01930D
