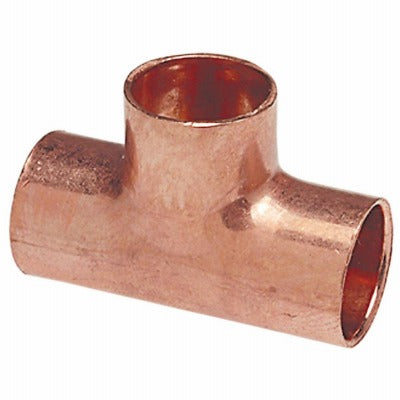

Nibco Inc W01730T Copper Solder Tee 1x1x3/4 Cxcxc

Product Description

The NIBCO INC W01730T is a lead-free copper pressure tee fitting designed for use in continuous pipeline runs where a branch connection is required. Sized at 1 x 1 x 3/4 inches with a CxCxC (solder cup) end configuration, this fitting accepts standard sweat connections on all three ports. It carries the U611 designation and is manufactured to lead-free standards, making it suitable for potable water systems. Licensed plumbers and pipefitters install this type of fitting during new construction and repipe work where a main line must branch off to a smaller 3/4-inch line.

This tee is used in residential and light commercial plumbing systems wherever a 1-inch copper main line needs to branch to a 3/4-inch copper line. The CxCxC end type means all three ports are solder cups, requiring standard soldering tools and copper pipe. It is well-suited for domestic water distribution, hydronic heating piping, and similar pressure piping applications. Package quantity is 5 pieces per unit of measure.

Key Features

• Lead-free construction — compliant for potable water applications
• CxCxC solder cup ends on all three ports for sweat connections
• 1 x 1 x 3/4 inch sizing allows main-line branch reduction
• U611 fitting designation
• Sold in packages of 5 pieces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for copper pressure piping systems using standard CxCxC sweat connections in 1 x 1 x 3/4 inch configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the water supply and drain the line before cutting or soldering. Use standard copper pipe soldering tools including a torch, flux, and lead-free solder rated for potable water service. Allow the fitting and pipe to cool fully before restoring system pressure.

Technical Specifications

• Connection Type: CxCxC (Solder Cup)
• Inlet Size: 1 inch
• Outlet Size: 3/4 inch
• Lead-Free: Yes
• Fitting Standard: U611
• Package Quantity: 5 pieces
• Weight: 1.53 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01730T
