Nibco Inc W01560T 3/4 Inch Ftg X C 90 Degree Elbow

Product Description

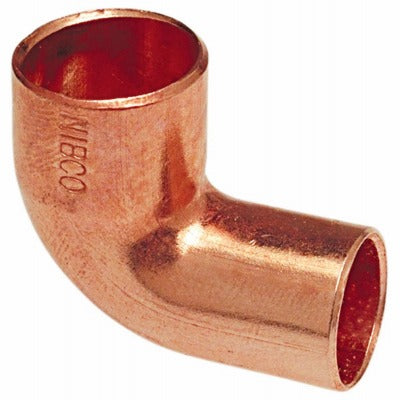

The NIBCO INC W01560T is a 3/4 inch FTG x C (fitting-to-copper) 90-degree elbow designed to change pipeline direction in copper piping systems. It features a solder cup on one end and a male solder end on the other, with a close rough radius that suits tight-space installations. The fitting is lead-free, meeting requirements for potable water applications. Plumbers and pipefitters use this elbow in both new construction and retrofit work where a square 90-degree turn is needed in a copper line.

This fitting is suited for residential and light commercial plumbing systems using copper tubing. The FTG x C configuration allows it to slip directly over copper tubing on one end and into a fitting socket on the other, making it a flexible choice when transitioning between fittings in close quarters. It is commonly installed in domestic water supply lines, hydronic heating loops, and general-purpose copper piping systems requiring a 90-degree directional change.

Key Features

• Lead-free construction suitable for potable water systems
• FTG x C (fitting-to-copper) end configuration for versatile inline connection
• Solder cup and male solder end for standard sweat installation
• Close rough radius design allows use in confined installation spaces
• Changes pipeline direction 90 degrees with a secure, leak-resistant joint when properly soldered

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch copper tubing systems using standard sweat-solder connections.

Installation Notes

Installation is performed by licensed plumbers using standard sweat-soldering techniques. Shut off the water supply and fully depressurize and drain the line before cutting or fitting. Clean all mating surfaces with emery cloth or a pipe brush and apply an appropriate flux before soldering per the fitting manufacturer and local plumbing code requirements. Reference IPC and applicable local codes for lead-free fitting mandates in potable water applications.

Technical Specifications

• Size: 3/4 inch
• End Connection: FTG x C (Fitting x Copper Sweat)
• Turn Angle: 90 degrees
• Radius Type: Close rough radius
• Lead-Free: Yes
• Package Quantity: 25 per unit of measure
• Weight: 2.77 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01560T
