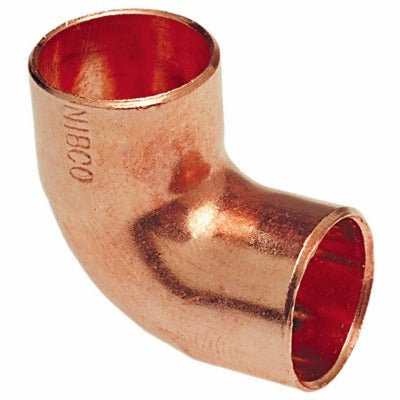

Nibco Inc W01530D 90 Degree Cxc Copper Elbow 2 Inches

Product Description

The NIBCO INC W01530D is a 2-inch CxC (copper-by-copper) 90-degree elbow fitting designed to change the direction of a copper pipeline at a right angle. Built to C607 standards with solder cup ends and a close rough radius, this lead-free fitting is suited for residential and commercial plumbing systems where directional changes are required in copper piping runs. Licensed plumbers and pipefitters install this fitting as part of sweat-soldered copper assemblies in potable water, hydronic heating, and general fluid distribution systems.

The W01530D is used in 2-inch copper pipe installations requiring a 90-degree turn within tight or standard framing conditions. Its close rough radius profile makes it well suited for installations where space constraints limit the use of long-radius fittings. This fitting ships in a package quantity of 10, making it appropriate for new construction projects, retrofit work, or service calls requiring multiple directional changes in a single piping system.

Key Features

• 90-degree elbow provides a clean right-angle directional change in copper piping
• CxC solder cup ends accept standard 2-inch copper pipe for sweat-soldered connections
• Close rough radius design fits in tighter spaces compared to long-radius fittings
• Lead-free construction meets potable water and plumbing code requirements
• Meets C607 fitting standard
• Sold in a package of 10 units

Compatibility

Designed as an OEM-style replacement and standard-fit elbow for 2-inch copper pipe systems using sweat-solder (CxC) connections in residential and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and drain the water supply completely before cutting into any existing piping. Clean and flux all mating surfaces before applying heat for soldering, and allow the joint to cool fully before restoring water pressure. Do not force-fit or overtighten during assembly, as copper solder fittings rely on proper clearance and capillary action for a leak-free joint.

Technical Specifications

• Pipe Size: 2 inches
• Connection Type: CxC (Copper by Copper) Solder Cup
• Elbow Angle: 90 degrees
• Radius Type: Close Rough Radius
• Lead-Free: Yes
• Standard: C607
• Package Quantity: 10 per package
• Package Weight: 8.72 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01530D
