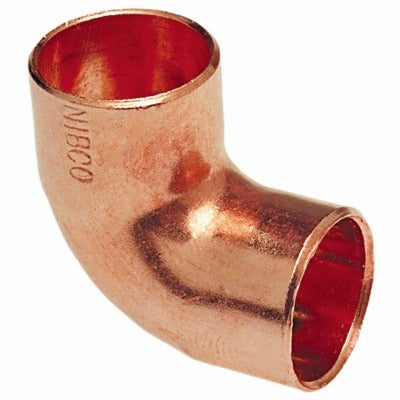

Nibco Inc W01525D 90 Degree Copper Elbow 1-1/4 Inch Cxc

Product Description

The NIBCO INC W01525D is a 1-1/4 inch copper-by-copper (CxC) 90-degree elbow fitting designed to redirect piping runs at a right angle within potable water, hydronic heating, and general plumbing systems. Manufactured to C607 standard with solder cup ends and a close rough radius, this fitting is lead-free, making it compliant with applicable safe drinking water regulations. Licensed plumbers and pipefitters install this type of fitting during rough-in and retrofit work wherever a 90-degree direction change is required in a copper piping system.

This elbow is suited for residential and light commercial plumbing and hydronic applications. The 1-1/4 inch CxC connection size is commonly found in main distribution lines, boiler piping, and branch supply runs. The close rough radius profile allows installation in tighter spaces where a long-radius elbow would not fit. Each unit is sold individually with a package quantity of five per pack from the supplier.

Key Features

• 90-degree direction change for copper piping systems
• 1-1/4 inch CxC solder cup ends for standard sweat connections
• Close rough radius design for tighter installation clearances
• Lead-free construction for potable water compliance
• Manufactured to C607 fitting standard

Compatibility

Designed as an OEM-style replacement and standard-fit elbow for 1-1/4 inch copper pipe systems using sweat (solder) end connections in residential and commercial plumbing and hydronic piping applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and fully drain the line before cutting and fitting. Proper flux application, copper pipe preparation, and sweat soldering technique are required for a leak-free joint. Do not apply heat to a joint with water present, as it will prevent solder from flowing correctly.

Technical Specifications

• Connection Type: CxC (Copper by Copper) Solder Cup
• Size: 1-1/4 inches
• Angle: 90 degrees
• Radius Type: Close Rough Radius
• Standard: C607
• Lead-Free: Yes
• Weight: 1.6 pounds
• Package Quantity: 5 per pack

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01525D
