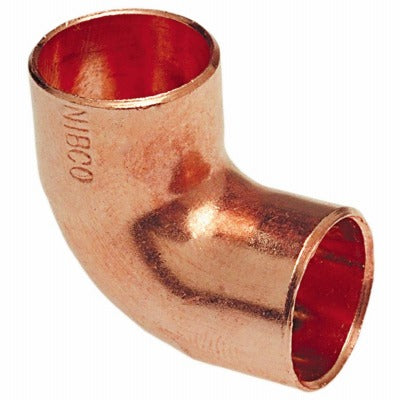

Nibco Inc W01520D 90 Degree Copper Elbow 1-1/2 Inch Cxc

Product Description

The NIBCO INC W01520D is a 1-1/2 inch copper 90-degree elbow fitting designed for sweat-solder (CxC) connections in residential and commercial plumbing and hydronic systems. Manufactured to C607 specifications, this fitting features solder cups and a close rough radius that allows pipeline direction changes in tight spaces. The lead-free construction meets federal and state potable water requirements. Licensed plumbers and pipefitters reach for this elbow when routing copper water lines, hydronic heating circuits, or mechanical room piping where a clean, permanent 90-degree turn is required.

This elbow is suited for use in residential and light commercial plumbing installations, including domestic hot and cold water supply lines, hydronic heating loops, and radiant system manifold connections. Its CxC end configuration accepts standard 1-1/2 inch copper tube on both ends, making it a straightforward sweat-fit solution for new construction and retrofit work.

Key Features

• 90-degree close rough radius geometry for direction changes in space-constrained runs
• Solder cup (CxC) ends compatible with standard 1-1/2 inch copper tube
• Lead-free construction meets federal potable water regulations
• Manufactured to C607 fitting standard
• Sold in a package quantity of 10 units

Compatibility

Designed as an OEM-style sweat-solder replacement or new-installation elbow for standard 1-1/2 inch copper tube systems in plumbing and hydronic piping applications.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter using standard torch brazing or soft-soldering equipment. Shut off and drain the affected water supply or hydronic loop before cutting into the line. Clean tube ends and fitting cups thoroughly with emery cloth and flux prior to soldering to ensure a watertight joint. Follow local plumbing codes and IPC requirements for flux type, solder alloy, and pressure testing after installation.

Technical Specifications

• Connection Type: CxC (Solder Cup)
• Fitting Angle: 90 degrees
• Tube Size: 1-1/2 inches
• Radius Type: Close Rough
• Lead-Free: Yes
• Standard: C607
• Weight: 4.54 pounds
• Package Quantity: 10
• Unit of Measure: EA

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01520D
