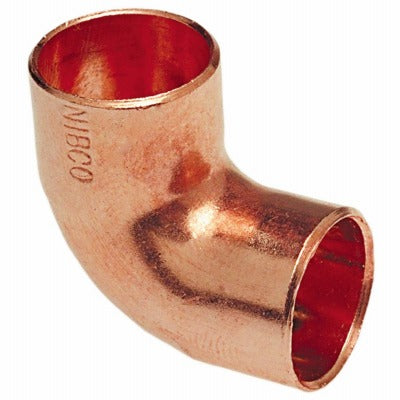

Nibco Inc W01470C 3/4 Inch Cxc 90 Degree Copper Elbow

Product Description

The NIBCO INC W01470C is a 3/4-inch copper-by-copper (CxC) 90-degree elbow fitting designed to redirect plumbing pipelines at a right angle. Featuring solder cup ends and a close rough radius, this fitting provides a compact directional change within tight spaces. Constructed as a lead-free fitting, it meets modern potable water safety requirements. It is suited for sweat-solder installation by licensed plumbers and pipefitters working on copper distribution systems in residential and light commercial applications. The package contains 50 individual fittings sold as a unit.

This fitting is used in copper water supply lines where a 90-degree change in pipeline direction is required. The CxC configuration means both ends accept standard copper tube via solder connection. Typical install scenarios include branch routing around structural elements, fixture supply connections, and rerouting runs in mechanical rooms or wall cavities. The close rough radius design makes it practical where clearance is limited. This fitting is appropriate for both hot and cold water copper piping systems.

Key Features

• 90-degree directional change with close rough radius for compact installations
• CxC solder cup ends compatible with standard copper tubing
• Lead-free construction suitable for potable water systems
• 3/4-inch nominal size fits standard 3/4-inch copper tube
• Sold in a package of 50 fittings for trade and wholesale use

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 3/4-inch copper CxC sweat-solder plumbing systems in residential and commercial piping applications.

Installation Notes

Installation is performed by a licensed plumber using standard copper sweat-soldering techniques. Shut off and drain the water supply completely before cutting or fitting any pipe section. Follow local plumbing codes and IPC guidelines for flux application, solder type, and joint inspection. Do not use open flame near combustible materials without appropriate shielding in place.

Technical Specifications

• Connection Type: CxC Solder Cup
• Angle: 90 degrees
• Pipe Size: 3/4 inch
• Lead-Free: Yes
• Package Quantity: 50 pieces
• Package Weight: 4.58 pounds
• Unit of Measure: EA

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01470C
