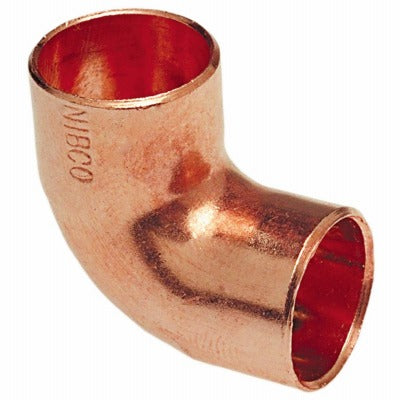

Nibco Inc W01450T 90 Degree Copper Cxc Elbow 0.5 Inch

Product Description

The NIBCO INC W01450T is a lead-free, 90-degree copper elbow fitting designed to change pipeline direction in copper tube systems. It features solder cups on both ends with a close rough radius, making it suitable for tight-clearance installations. The CxC (copper-by-copper) connection style accepts standard copper tube and is joined using standard soldering (sweat) technique. Packaged in quantities of 50, this fitting is a staple stock item for plumbing rough-in work on residential and light commercial projects. Licensed plumbers and pipefitters install this fitting during new construction and retrofit work wherever a 90-degree directional change is required in a copper water line.

The W01450T is sized at 0.5 inches and is commonly used in domestic water supply systems, hydronic heating distribution lines, and general plumbing rough-in applications. Its close rough radius keeps the fitting compact, which is useful in framed wall cavities and mechanical chases where space is limited. The lead-free construction meets current plumbing code requirements for potable water service.

Key Features

• Lead-free construction meets potable water code compliance requirements
• CxC solder cup ends for standard sweat connection on 0.5 inch copper tube
• Close rough radius design suits tight-clearance and in-wall installations
• Changes pipeline direction 90 degrees in a compact form factor
• Sold in a 50-piece package, suitable for stocking and bulk rough-in jobs

Compatibility

Designed as an OEM-style replacement and standard-stock fitting for 0.5 inch copper tube systems using sweat (solder) connections in residential and commercial plumbing applications.

Installation Notes

Installation is performed by a licensed plumber following applicable local plumbing codes and IPC guidelines. Shut off and depressurize the water supply line before cutting and fitting. Clean and flux all mating surfaces before soldering to ensure a leak-free joint. Allow solder joints to cool completely before restoring system pressure and inspecting for leaks.

Technical Specifications

• Connection Type: CxC (Copper x Copper) Solder Cup
• Fitting Angle: 90 degrees
• Tube Size: 0.5 inches
• Lead-Free: Yes
• Package Quantity: 50 pieces
• Unit of Measure: EA
• Weight: 2.17 pounds (per package)

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01450T
