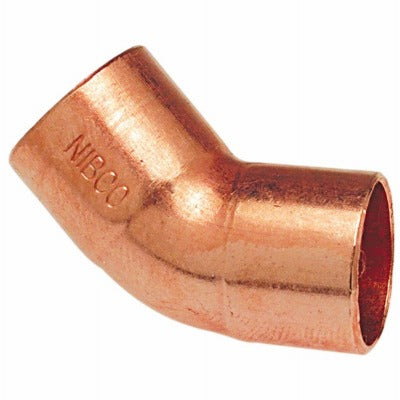

Nibco Inc W01360T 45 Degree Cxc Solder Elbow 1 Inch

Product Description

The NIBCO INC W01360T is a 1-inch copper-by-copper (CxC) 45-degree solder elbow fitting designed to redirect a copper pipeline at a 45-degree angle. The fitting features solder cups on both ends for a secure sweat connection, making it a standard component in residential and commercial plumbing and hydronic systems. Constructed as a lead-free fitting, it meets requirements for potable water installations. Plumbers and pipefitters install this elbow where a moderate directional change is needed without the sharper turn of a 90-degree fitting.

This fitting is suited for copper tubing runs in domestic water supply, hydronic heating, and general plumbing applications. It is appropriate for both new construction and retrofit work wherever a 45-degree offset is required in a 1-inch copper line. The solder-cup design follows standard sweat-fitting practice, making it compatible with conventional torch-and-solder installation methods used across residential and light commercial plumbing systems.

Key Features

• 45-degree directional change for copper pipeline routing
• CxC solder cup ends for sweat connection on both sides
• Lead-free construction suitable for potable water systems
• 1-inch nominal size for standard copper tubing
• Sold in a package of 5 units per UoM

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1-inch copper tubing systems using sweat (solder) connections in plumbing and hydronic applications.

Installation Notes

Installation is performed by a licensed plumber using standard torch-and-solder technique. Shut off and drain the water supply before cutting into any existing copper line. Clean and flux all mating surfaces before applying heat to ensure a sound joint. Work must comply with applicable local plumbing codes, which typically reference IPC or UPC standards for solder fittings in potable water systems.

Technical Specifications

• Size: 1 inch
• Connection Type: CxC (Copper by Copper) Solder Cup
• Angle: 45 degrees
• Lead-Free: Yes
• Package Quantity: 5 per unit of measure
• Weight: 0.93 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01360T
