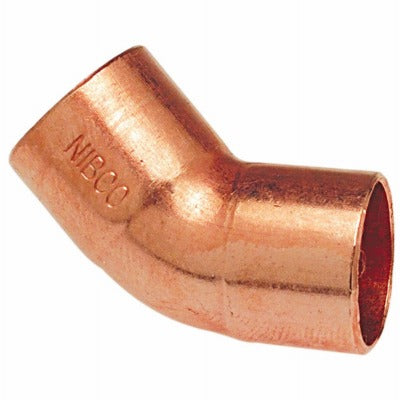

Nibco Inc W01340T 45 Degree Cxc Solder Elbow 1/2 Inch

Product Description

The NIBCO INC W01340T is a 1/2-inch copper-to-copper (CxC) 45-degree solder elbow fitting designed to redirect copper pipe runs at a 45-degree angle in plumbing and hydronic systems. The fitting features solder cups on both ends, allowing it to be joined to copper tubing using standard lead-free solder and flux. Constructed to lead-free specifications, the W01340T is suitable for potable water installations where lead-free compliance is required. Licensed plumbers and pipefitters install this fitting in residential and light commercial applications during new construction and retrofit work.

This elbow is used wherever a 45-degree directional change is needed in a copper pipe run. Typical applications include domestic hot and cold water distribution, hydronic heating loops, and general plumbing rough-in work. The CxC end configuration means both sockets accept copper tubing of the same nominal size, making it straightforward to integrate into standard copper piping systems. Sold in a package quantity of 25, it is well suited for contractors stocking fittings for multi-fixture or multi-unit projects.

Key Features

• 45-degree directional change for copper pipe routing flexibility
• Solder cup ends on both sides for CxC sweat connections
• Lead-free construction meets potable water installation requirements
• 1/2-inch nominal size fits standard 1/2-inch copper tubing
• Packaged in quantities of 25 for contractor convenience

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1/2-inch copper tubing in residential and commercial plumbing systems using CxC sweat connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off and fully drain the water supply before cutting into any existing line. Clean and deburr the pipe ends and fitting sockets thoroughly before applying flux and soldering. Use only lead-free solder and flux approved for potable water systems when joining this fitting.

Technical Specifications

• Connection Type: CxC (Copper to Copper) Sweat Solder
• Fitting Angle: 45 degrees
• Nominal Size: 1/2 inch
• Lead-Free: Yes
• Package Quantity: 25 per package
• Weight: 1.13 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01340T
