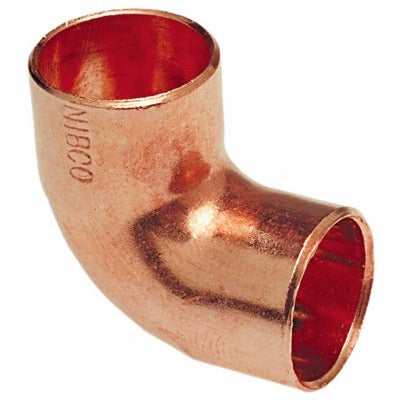

Nibco Inc W 01622P10 90 Degree Cxc Elbow 1/2 Inch

Product Description

The NIBCO INC W 01622P10 is a 1/2-inch copper 90-degree elbow fitting designed for sweat-solder (CxC) copper tubing connections. It features solder cups on both ends and a close rough radius, allowing a full 90-degree change in pipeline direction within tight installation spaces. Constructed lead-free to meet current plumbing code requirements, this fitting is appropriate for potable water supply lines, hydronic heating loops, and general copper plumbing applications. Licensed plumbers and pipefitters install these fittings using standard soldering tools and flux. Sold in a bag of 10 fittings.

This elbow is suited for residential and light commercial plumbing systems where copper tubing is routed through walls, floors, or mechanical rooms and a directional change is required. The CxC connection type is compatible with standard copper tube soldering practices. No mechanical connectors or press tools are needed — a torch, flux, and solder are the primary installation materials. The close rough radius design keeps the fitting compact, which is useful in confined spaces common to new construction and retrofit plumbing work.

Key Features

• 90-degree directional change with a close rough radius for compact installations
• CxC (copper-to-copper) sweat-solder ends on both sides
• Lead-free construction for compliance with Safe Drinking Water Act requirements
• Solder cups provide consistent, reliable joints when properly fluxed and sweated
• Sold in a bag of 10 for jobsite efficiency

Compatibility

Designed as an OEM-style replacement and new-installation fitting for standard 1/2-inch copper tubing in residential and commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and fully depressurize and drain the line before soldering. Clean and flux all mating surfaces before applying heat, and allow the joint to cool completely before restoring pressure. Do not overheat the fitting, as excess heat can compromise joint integrity.

Technical Specifications

• Connection Type: CxC (Copper x Copper) Sweat Solder
• Fitting Angle: 90 degrees
Tube Size: 1/2 inch
• Lead-Free: Yes
• Weight: 10.46 pounds
• Package Quantity: 10 per bag
• Unit of Measure: PK

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W 01622P10
