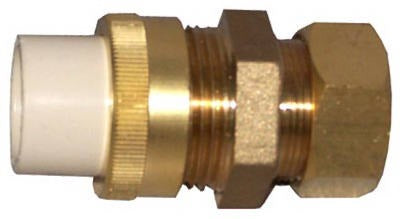

Nibco Inc T00350L Brass Compression Union 0.5 in Slip

Product Description

The NIBCO INC T00350L is a lead-free brass compression union designed to transition between copper or brass tube and CPVC piping. It features a 0.5 inch slip inlet and a brass compression outlet, allowing plumbers and pipefitters to connect dissimilar pipe materials without soldering the compression side. The union design permits easy disassembly of the piping system for inspection, repair, or modification. A replaceable brass ferrule is included, extending the service life of the fitting and reducing material cost on future rework. This fitting suits both residential and light commercial plumbing applications where mixed-material piping runs are common.

The T00350L is used wherever a copper or brass tube run meets a CPVC line and a serviceable, re-enterable connection is required. Typical applications include domestic water supply lines, fixture supply connections, and retrofit plumbing work where cutting into an existing CPVC system is necessary. The slip-by-compression configuration keeps one side tool-free for the compression connection while the slip end is soldered to copper or brazed to brass tube. Sold in a package of 10 units, this fitting is suited for contractors stocking common transition hardware.

Key Features

• Lead-free brass construction meets current potable water plumbing requirements
• 0.5 inch slip x brass compression configuration for copper-to-CPVC transitions
• Union design allows full disassembly of the piping section without cutting
• Replaceable brass ferrule reduces cost of future reconnections
• Sold in a package of 10 for job-site or shop stocking

Compatibility

Designed for transitioning from copper or brass tube to CPVC piping systems at 0.5 inch nominal size. Suitable as an OEM-style plumbing fitting for residential and light commercial water supply applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and depressurize the line before disassembly or fitting installation. The slip end is joined to copper or brass tube by soldering; allow the fitting to cool completely before completing the compression connection on the CPVC side, as excess heat can damage CPVC. Do not overtighten the compression nut — hand-tighten and follow standard compression fitting practice per the fitting manufacturer guidance.

Technical Specifications

• Connection Type: 0.5 inches Slip x Brass Compression
• Material: Brass
• Lead Free: Yes
• Ferrule: Replaceable Brass Ferrule
• Package Quantity: 10 EA
• Weight: 2.47 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: T00350L
