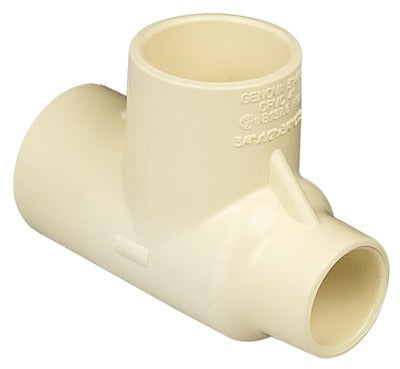

Nibco Inc T00190C Cpvc Tee 3/4x1/2x3/4 Inch Branch Fitting

Product Description

The NIBCO INC T00190C is a reducing CPVC tee fitting sized 3/4 inches by 1/2 inches by 3/4 inches, designed to split or branch a supply line in hot and cold water distribution systems. The beige CPVC construction resists corrosion and handles the elevated temperatures common in domestic hot water piping. This fitting is used to create a branch supply line off a main run, allowing a plumber to feed a secondary outlet or fixture without interrupting the primary flow path. It is a standard solvent-weld connection fitting suited for residential and light commercial plumbing installations.

This tee is applied wherever a reducing branch takeoff is needed in a CPVC water distribution system. The run ports measure 3/4 inches and the branch outlet measures 1/2 inches, making it a practical choice for transitioning from a 3/4-inch main line to a 1/2-inch branch serving individual fixtures such as lavatories, water closets, or similar outlets. Licensed plumbers and journeymen installers use this fitting in new construction and retrofit plumbing projects where CPVC piping is specified.

Key Features

• Reducing tee configuration: 3/4 x 1/2 x 3/4 inches for branch supply line applications
• CPVC material provides corrosion resistance and compatibility with hot and cold potable water
• Beige color finish consistent with standard CPVC piping systems
• Solvent-weld socket connections for a reliable, leak-free joint
• Sold individually; package quantity of 20 units available per unit of measure

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and light commercial CPVC hot and cold water distribution piping systems using 3/4-inch and 1/2-inch CPVC pipe.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC standards. Shut off the water supply and fully depressurize and drain the line before cutting into existing piping. Use only CPVC-rated solvent cement and primer appropriate for the pipe schedule being joined, and allow full cure time before restoring pressure. Do not use this fitting with PVC pipe or fittings not rated for hot water service.

Technical Specifications

• Material: CPVC
• Color: Beige
• Run Size: 3/4 inches
• Branch Size: 1/2 inches
• Connection Type: Solvent-weld socket
• Weight: 1.3 pounds
• Package Quantity: 20 per unit of measure

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: T00190C
