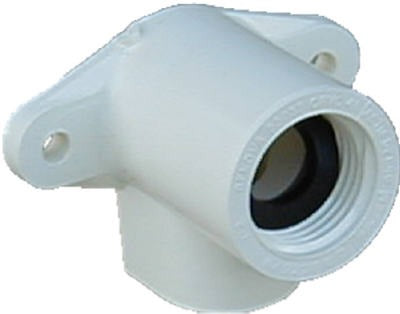

Nibco Inc T00145D Cpvc Fpt Wing Elbow 1/2 Inch

Product Description

The NIBCO INC T00145D is a 1/2-inch CPVC female pipe thread (FPT) wing elbow designed for directional changes in hot and cold water distribution piping. The wing elbow configuration provides a flat mounting surface, allowing the fitting to be secured directly to a wall or framing member during rough-in work. Constructed from chlorinated polyvinyl chloride (CPVC), this fitting handles the elevated temperatures and pressures common in residential and light commercial potable water systems. Plumbers and pipefitters install this fitting where a 90-degree change of direction is needed at a threaded connection point.

This fitting is suited for residential and light commercial plumbing applications involving CPVC hot and cold water supply lines. The FPT end accepts a male-threaded pipe or fitting, making it useful at fixture stub-outs, valve connections, and similar termination points. Its wing design simplifies securing the fitting to structural members before threading in the supply line, reducing movement and stress on the joint during and after installation. Sold in a package quantity of 20 units, making it practical for larger rough-in jobs or stocking service vehicles.

Key Features

• CPVC construction rated for hot and cold potable water service
• Wing body allows direct fastening to wall studs or framing for a secure, stationary connection
• 1/2-inch female pipe thread (FPT) inlet accepts standard male-threaded fittings and valves
• 90-degree elbow geometry for in-line directional changes at threaded terminations
• Sold in a bulk package of 20 units per package

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch CPVC threaded piping systems in residential and light commercial potable water distribution applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC or applicable regional standards. Shut off the water supply and depressurize the line before making any connections. Use only CPVC-compatible thread sealant or tape on the FPT threads; do not use petroleum-based compounds, which can degrade CPVC. Avoid over-tightening threaded connections, as CPVC fittings can crack under excessive torque.

Technical Specifications

• Material: CPVC
• Connection Type: Female Pipe Thread (FPT)
• Size: 1/2 inch
• Fitting Angle: 90 degrees
• Package Quantity: 20 units
• Weight: 1.66 pounds (per package)

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: T00145D
