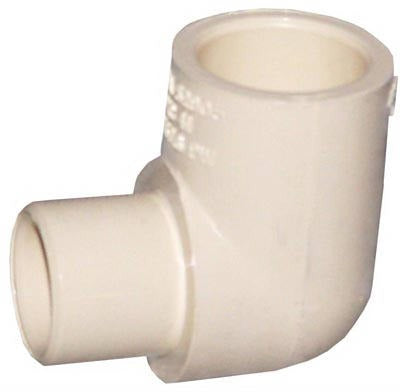

Nibco Inc T00140D Cpvc 90 Degree Street Elbow 3/4 in

Product Description

The NIBCO INC T00140D is a 3/4-inch CPVC 90-degree street elbow designed for directional changes in hot and cold water distribution piping systems. Street elbows feature one spigot end and one socket end, allowing the fitting to connect directly into another fitting socket without requiring an additional coupling or nipple. This reduces the number of joints in tight spaces and simplifies layout. The fitting is machined from chlorinated polyvinyl chloride, which resists corrosion, scale buildup, and the higher service temperatures common in potable water and hydronic distribution lines. Licensed plumbers and pipefitters install this type of fitting in residential and light commercial plumbing systems.

The T00140D is suited for 3/4-inch CPVC piping runs where a 90-degree change of direction is required in a compact space. Typical applications include domestic hot and cold water supply lines, branch connections at fixtures, and retrofit work where cast iron or copper systems are being transitioned to CPVC. The street configuration is particularly useful at valve inlets, tee outlets, and manifold connections where back-to-back fittings would otherwise be needed. This fitting is sold individually but is available in package quantities of 30 units.

Key Features

• 90-degree street elbow configuration with one spigot end and one socket end for direct fitting-to-fitting connection
• 3/4-inch nominal size for standard CPVC piping systems
• CPVC construction resists corrosion, scale, and elevated service temperatures
• Compact design reduces joint count in confined installation areas
• Sold individually; available in 30-unit package quantities

Compatibility

Designed as an OEM-style replacement and standard-fit component for 3/4-inch CPVC piping systems used in residential and light commercial potable water distribution applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines for CPVC solvent-cement joints. Shut off the water supply and depressurize the line before cutting into existing piping. Clean and deburr pipe ends, apply CPVC-rated primer and solvent cement per the cement manufacturer's instructions, and allow full cure time before restoring pressure. Do not use PVC solvent cement in place of CPVC-rated cement.

Technical Specifications

• Pipe Size: 3/4 inches
• Material: CPVC
• Configuration: 90-degree street elbow
• Weight: 1.8 pounds
• Package Quantity: 30 per package
• Unit of Measure: EA

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: T00140D
