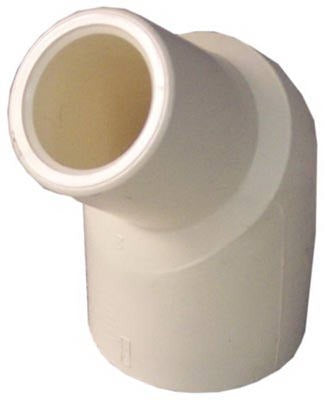

Nibco Inc T00095D Cpvc 45 Degree Street Elbow 3/4 in

Product Description

The NIBCO INC T00095D is a CPVC 45-degree street elbow designed for use in hot and cold water distribution systems. A street elbow features one male (spigot) end and one female (socket) end, allowing it to connect directly to a fitting without requiring an additional coupling. This configuration simplifies tight-space installations and reduces the total number of fittings in a run. At 3/4 inches, this elbow suits common residential and light commercial supply line sizes. Plumbers and pipefitters install this fitting using solvent-cement joining methods standard to CPVC systems.

This fitting is used in residential and light commercial plumbing applications where a 45-degree directional change is needed in a CPVC supply line. It is well suited for water distribution runs in walls, ceilings, and mechanical rooms where space is limited. The street configuration is particularly useful when connecting back-to-back fittings or making direction changes off a valve or other fitting body. This package contains 25 fittings per unit of measure.

Key Features

• 45-degree angle for gradual directional changes in supply piping
• Street (spigot x socket) end configuration eliminates need for intermediate coupling
• CPVC material rated for hot and cold water service
• 3/4 inch size fits common residential and light commercial supply lines
• Solvent-cement joining for a permanent, leak-resistant connection
• Sold in a 25-piece package for job-site or inventory stocking

Compatibility

Designed as an OEM-style replacement and standard fitment for 3/4 inch CPVC solvent-weld piping systems used in residential and light commercial water distribution applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASTM standards for CPVC solvent cementing. Shut off and depressurize the water supply line before cutting into any existing piping. Use the correct CPVC-rated primer and solvent cement — do not substitute PVC cement. Allow full cure time per the cement manufacturer's instructions before restoring system pressure.

Technical Specifications

• Material: CPVC
• Size: 3/4 inches
• Angle: 45 degrees
• End Configuration: Street (spigot x socket)
• Join Method: Solvent cement
• Package Quantity: 25 pieces
• Weight: 1.09 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: T00095D
