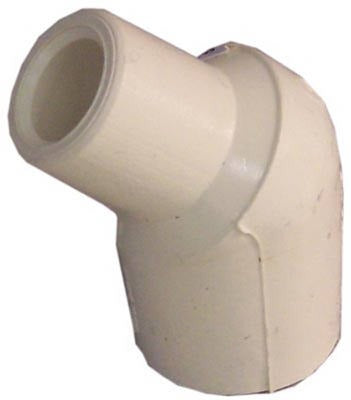

Nibco Inc T00093C Cpvc 45 Degree Street Elbow

Product Description

The NIBCO INC T00093C is a 1/2-inch CPVC 45-degree street elbow designed to change flow direction in chlorinated polyvinyl chloride piping systems. This fitting accepts a male spigot on one end and a female socket on the other, allowing it to connect directly to the plain end of adjacent CPVC pipe or fittings without requiring an additional coupling. The 45-degree angle makes it well suited for moderate directional changes in tight installations. Licensed plumbers and pipefitters install this fitting in residential and light commercial applications where CPVC pipe is code-approved.

This street elbow is used in hot and cold potable water distribution systems, as well as hydronic and radiant heating configurations where CPVC is specified. Its compact street-fitting geometry is particularly useful when working in confined spaces such as wall cavities, mechanical chases, and under-sink runs where a standard elbow-plus-nipple combination would not fit. The 1/2-inch size is among the most common pipe sizes in residential rough-in and remodel plumbing.

Key Features

• CPVC construction provides chemical resistance and suitability for hot and cold water service
• 45-degree angle for moderate directional changes with lower flow restriction than a 90-degree fitting
• Street-fitting configuration with one male spigot end and one female socket end for direct inline connection
• 1/2-inch pipe size covers the most common residential supply line dimension
• Sold individually, packaged in quantities of 30 per carton

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 1/2-inch CPVC piping systems using solvent-cement joining methods.

Installation Notes

Installation must be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code where adopted. Shut off the water supply and depressurize the line before cutting into existing piping. Use a CPVC-rated solvent cement and primer as specified by the fitting manufacturer and applicable code; do not substitute PVC cement. Allow full cure time before restoring pressure to the system.

Technical Specifications

• Material: CPVC
• Pipe Size: 0.5 inches
• Fitting Angle: 45 degrees
• Fitting Type: Street Elbow (male spigot x female socket)
• Weight: 0.78 pounds
• Package Quantity: 30 per carton
• Unit of Measure: EA

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: T00093C
