NIBCO INC NLH243H WD30223 4 WAFER BFV L/LK HNDL DUCT IRON

Product Description

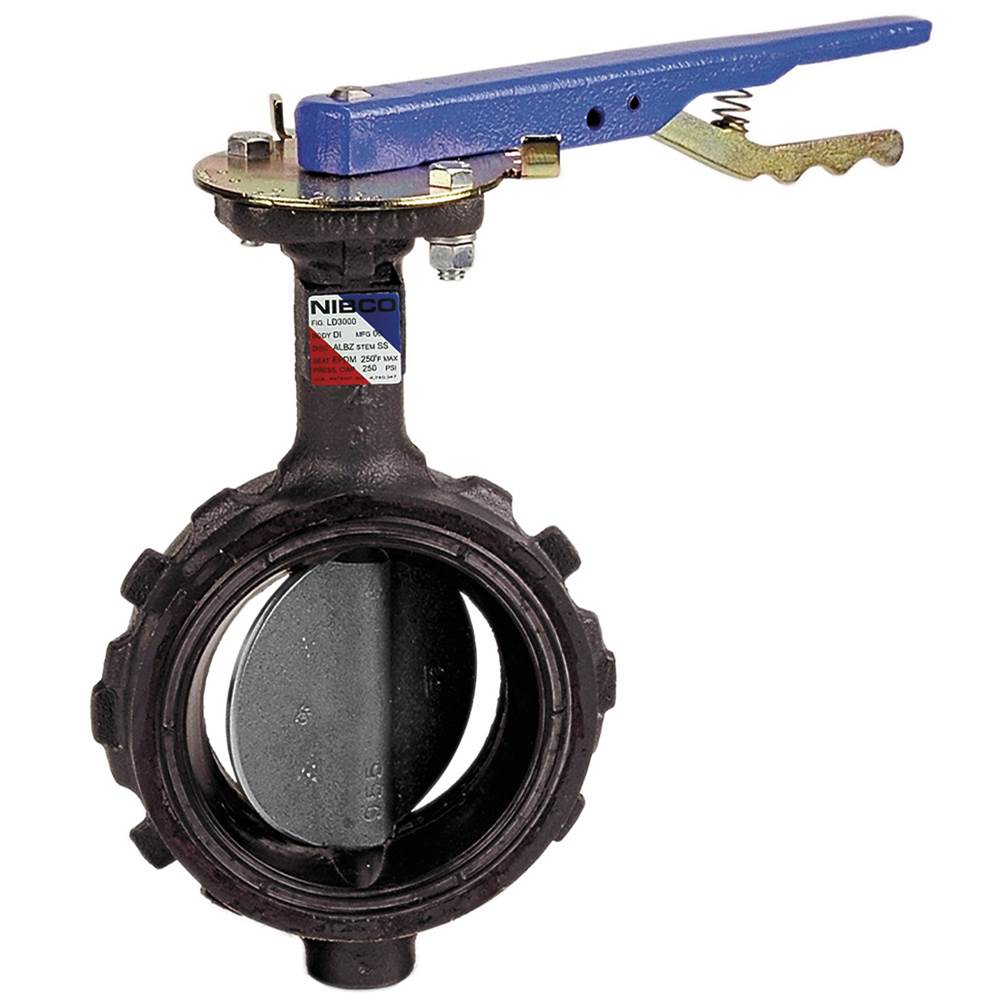

NIBCO INC Butterfly Valve, MPN NLH243H, is a wafer-style valve designed for various industrial applications. This four-inch model is suitable for water media and can operate effectively at temperatures up to two hundred twenty-five degrees Fahrenheit. The valve features a durable ductile iron body with a stainless steel disc and stem. It comes with a locking handle actuator for secure operation.

• Pressure rating of two hundred fifty psi
• EPDM molded-in seat liner
• Geometric drive for precise control

Product Highlights

This valve is ideal for commercial and light industrial processes that require reliable water flow control.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923725387

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Domestic/Import: Domestic
• Media: Water
• Nominal Size: 4 in
• Pressure Class: 125/150 lb
• Series: WD-3022
• Softgoods Material: EPDM
• Temperature Rating: 225 deg F Continuous/250 deg F Intermittent
• Type: Wafer Style
