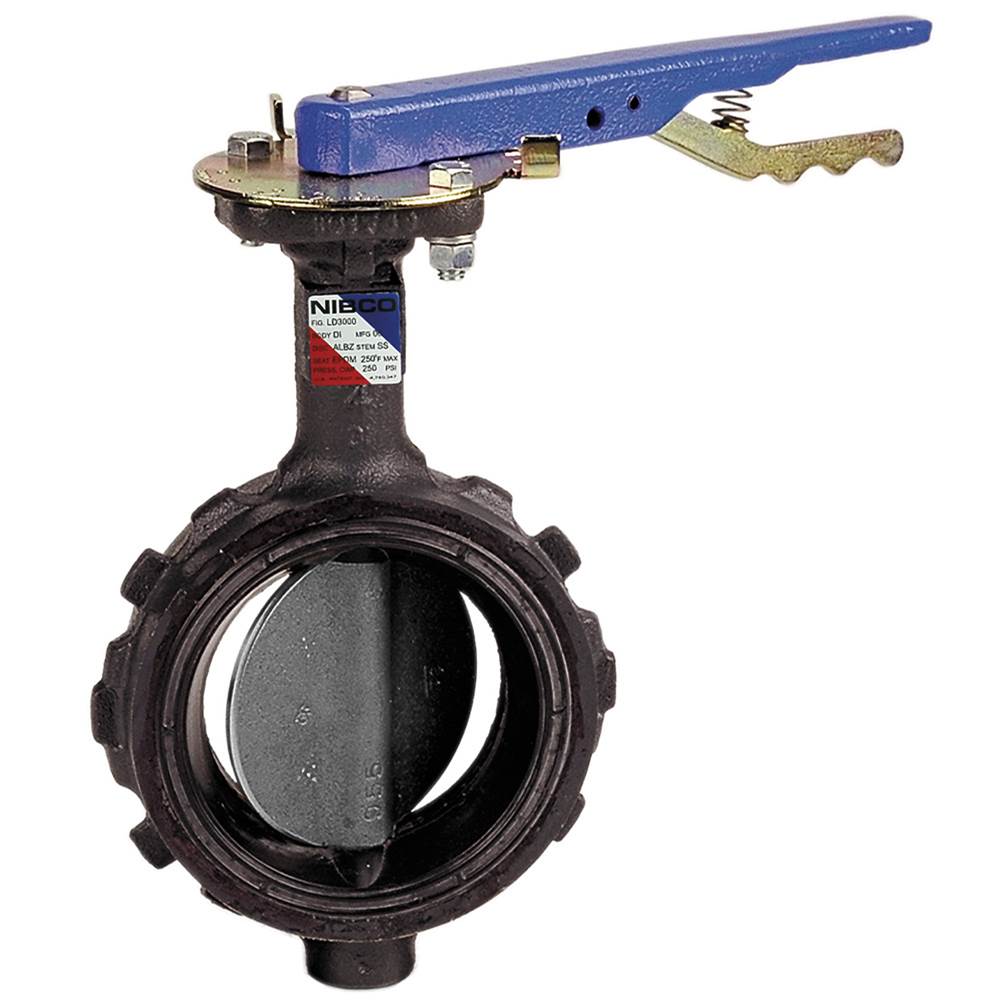

NIBCO INC NLH243D WD30223 2 WAFER BFV L/LK HNDL DUCT IRON

Product Description

NIBCO INC NLH243D is a wafer-style butterfly valve designed for water applications. It has a two-inch nominal size and is suitable for ratings up to 250 psi. The valve features a ductile iron body, stainless steel disc, and stainless steel stem with a locking handle actuator. Key features include:

• Temperature rating of 225 degrees Fahrenheit continuous and 250 degrees Fahrenheit intermittent.
• EPDM molded-in seat liner providing durability.
• Geometric drive for improved operational efficiency.

Product Highlights

This valve is built for commercial and light industrial applications. It is not recommended for steam service. The valve facilitates easy operation with a manual gear operator, ensuring seamless control in various environments.

Product Information

Standard Information

• Brand: NIBCO INC
• MPN: NLH243D

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Media: Water
• Nominal Size: 2 in
• Pressure Class: 125/150 lb
• Series: WD-3022
• Temperature Rating: 225 deg F Continuous/250 deg F Intermittent
• Domestic/Import: Domestic
• Softgoods Material: EPDM
• Stem & Pin Material: Stainless Steel
