NIBCO INC NLH200H WD30103 4 WAFER BFV L/LK HNDL DUCT IRON

Product Description

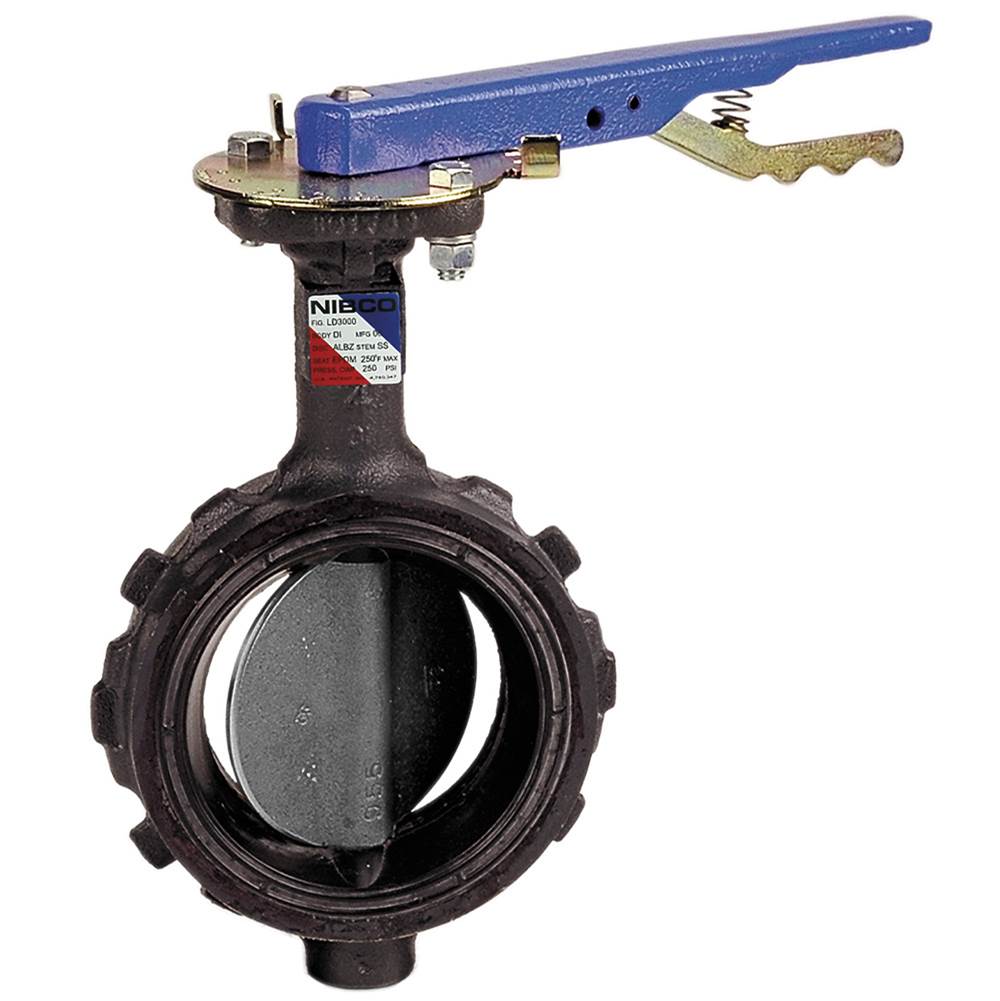

NIBCO INC offers the NLH200H Butterfly Valve, suitable for various water applications. This product features a wafer style design and a nominal size of four inches. It holds a pressure rating of two hundred fifty psi and is ideal for HVAC and vacuum services.

• Locking handle actuator for secure operation
• Ductile iron body with aluminum bronze disc
• Temperature rating of two hundred twenty-five degrees Fahrenheit continuous

Product Highlights

The NIBCO NLH200H Butterfly Valve is designed for durability in commercial applications. It ensures reliable control for water flow with its robust materials and construction.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: WD-3010

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Domestic/Import: Domestic
• Media: Water
• Nominal Size: 4 in
• Pressure Class: 125/150 lb
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel
• Temperature Rating: 225 deg F Continuous/250 deg F Intermittent
• Not recommended for steam service
