NIBCO INC NLH200E WD30103 21/2 WAFER BFV L/LK HNDL D I

Product Description

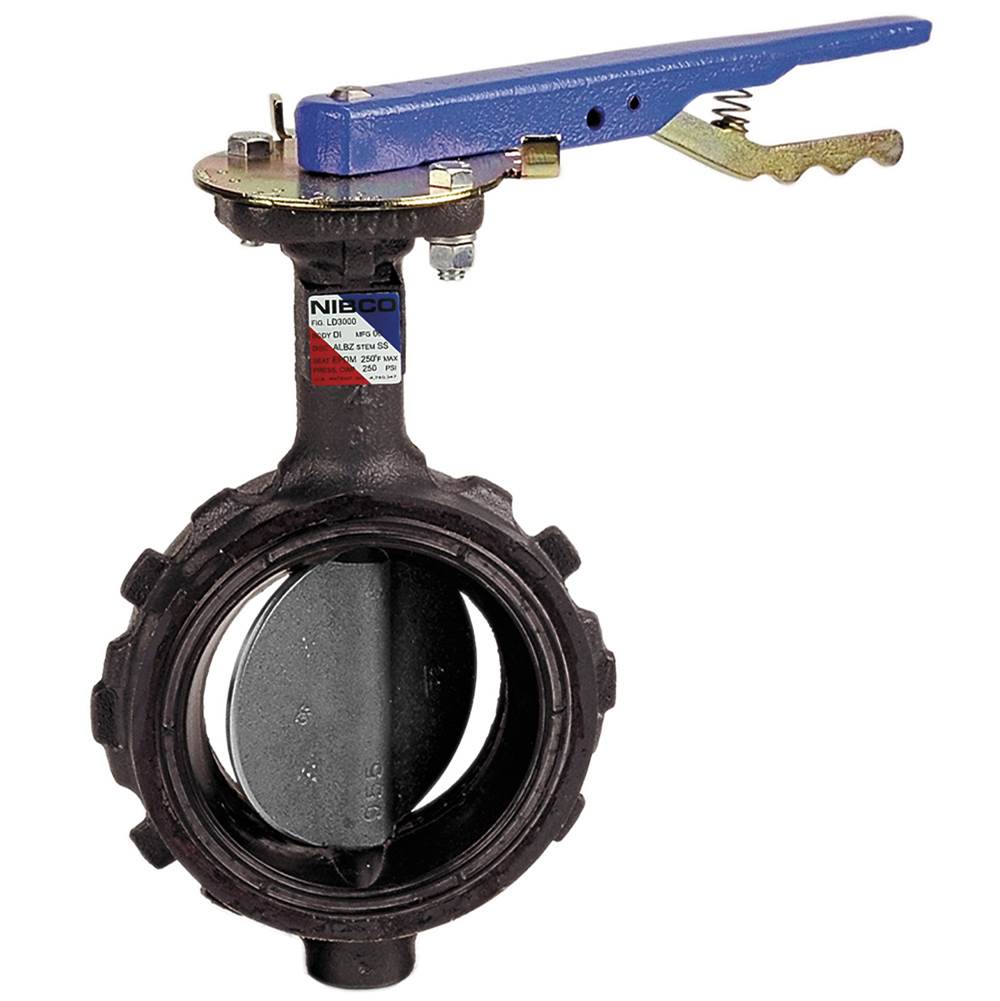

The NIBCO INC NLH200E is a butterfly valve designed in a wafer style. It measures two and a half inches nominal and is rated for a pressure of one hundred twenty-five to one hundred fifty pounds. This valve operates efficiently within temperature limits of two hundred twenty-five degrees Fahrenheit continuous and two hundred fifty degrees Fahrenheit intermittent. The valve is suitable for water media and features a locking handle actuator. The body is made from ductile iron, while the disc is made of aluminum bronze. This product also includes a 416 stainless steel stem and pin with an EPDM liner.

• High pressure rating of two hundred fifty psi
• Constructed for water applications
• Five years limited warranty

Product Highlights

The NIBCO INC butterfly valve is ideal for commercial and light industrial process applications, particularly in HVAC and vacuum services.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923722966

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Media: Water
• Nominal Size: 2-1/2 inches
• Pressure Class: 125/150 lb
• Series: WD-3010
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel
• Temperature Rating: 225 degrees Fahrenheit Continuous / 250 degrees Fahrenheit Intermittent
