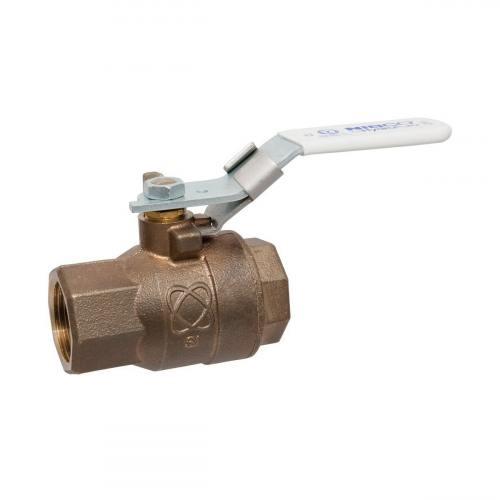

NIBCO INC NL96HK5 T-585-66-LF-LL 3/8 THRD SS TRIM LOCK HDL

Product Description

NIBCO INC produces the NL96HK5, a ball valve from the T-585-66-LF series. This valve features a three-eighths inch nominal size and a threaded design rated for six hundred psi. It has a maximum temperature rating of three hundred degrees Fahrenheit. This valve is suitable for water applications and offers a full port with a thirty-eight thousandths inch orifice. It includes a locking lever handle actuator for secure operation.

• Pressure rating of six hundred psi
• Stainless steel ball and silicon bronze body
• For residential and commercial water supply applications

Product Highlights

This valve is ideal for use in systems that transport water for drinking and other consumption needs, ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: NL96HK5

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Thread
• Inlet to Outlet Length: 1.79 inches
• Media: Water
• Nominal Size: 3/8 inches
• Orifice Size: 0.38 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-585-66-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 degrees Fahrenheit
• Top to Inlet Center: 1.85 inches
• Trim Material: Stainless Steel Stem
• Type: 2-Piece
