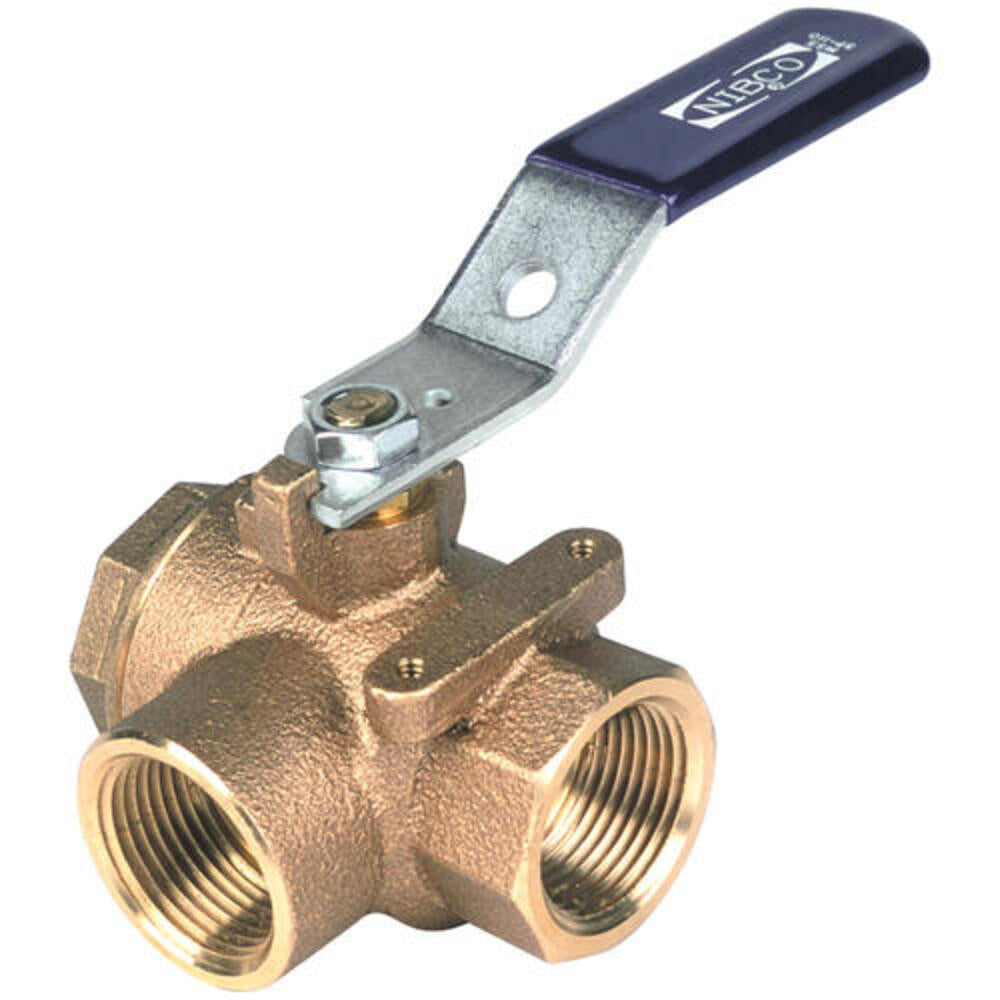

NIBCO INC NL95L06 T58570W3 1/2 3 WAY BALL VALVE

Product Description

The NIBCO INC NL95L06 is a 1/2 inch 3-way ball valve designed for various applications. This valve features a durable bronze body and chrome plated brass ball, providing reliable operation for water flow control.

• Standard lever actuator for easy operation
• Full port design for optimal flow
• Dezincification resistant construction

Product Highlights

This NIBCO ball valve is suitable for commercial and light industrial processes. It can handle a temperature rating of up to four hundred degrees Fahrenheit and a pressure rating of four hundred psi. The chrome plated brass ball ensures durability in demanding environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NL95L06

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.44 inches
• Media: Water
• Nominal Size: 1/2 inches
• Orifice Size: 1/2 inches
• Port Type: Full
• Pressure Rating: 400 psi
• Series: T-585-70-W3
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 1.22 inches
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece 3-Way
