NIBCO INC NL95D0A T5857066ST 1 250 PSI STEAM SERV

Product Description

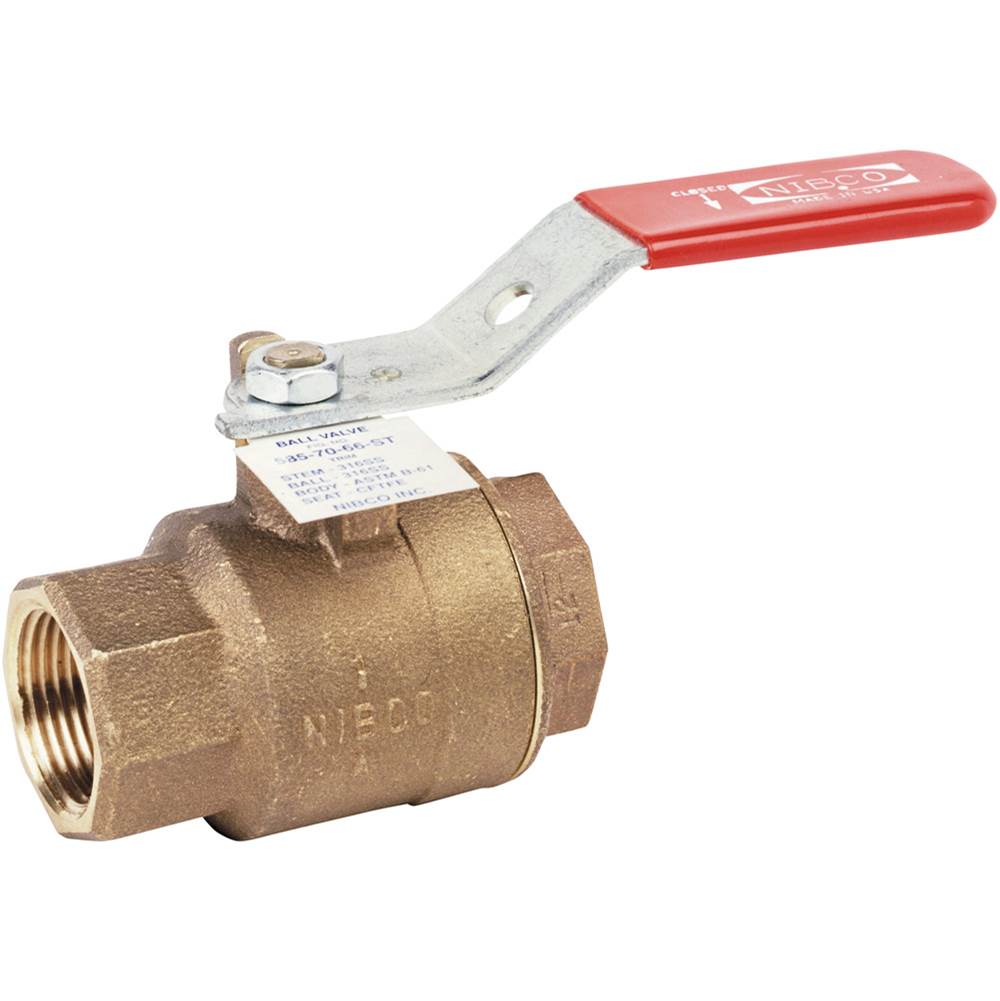

The NIBCO INC NL95D0A T5857066ST 1 is a ball valve designed for steam service. It features a two-piece construction with a quarter turn operation. This valve is ideal for applications that require a reliable and efficient flow control solution.

• Rated for both 600 psi non-shock cold working pressure and 250 psi for saturated steam.
• Made with a stainless steel ball and a bronze body for durability.
• Designed for water media with a full port configuration.

Product Highlights

The NIBCO ball valve is suitable for commercial and light industrial applications that require medium pressure steam.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Product Number: NL95D0A

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Stainless Steel
• Body Material: Bronze
• Nominal Size: 1 in
• Orifice Size: 1 in
• Dimensions: 6.44 in L
• Inlet to Outlet Length: 3.34 in
• Top to Inlet Center: 2.38 in
• Temperature Rating: 400 deg F
• Pressure Rating: 600 psi
• Media: Water
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Softgoods Material: Carbon Filled PTFE
