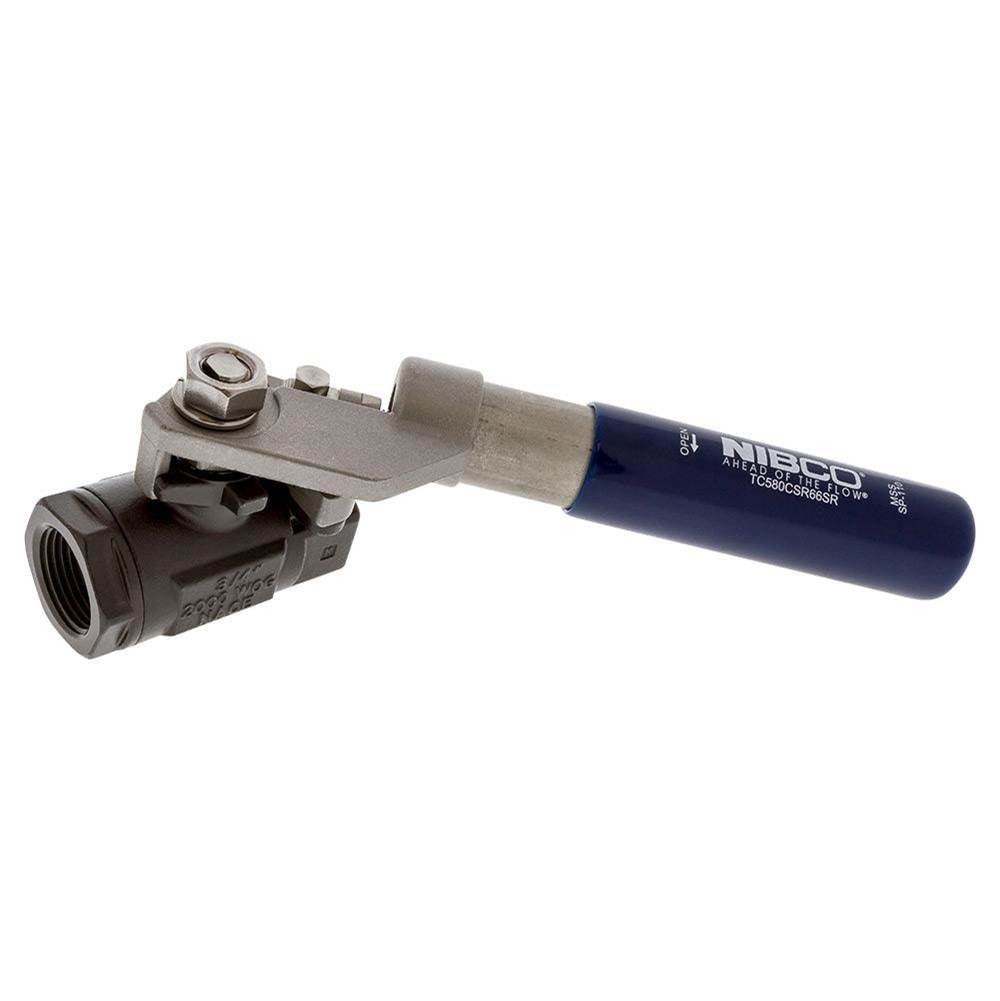

NIBCO INC NL94Z0B TC580CSR25SR 1-1/4THD RP BV 2PT MTG SR CS

Product Description

NIBCO INC Ball Valve, MPN NL94Z0B, is a two-piece ball valve designed for use in various water applications. It has a nominal size of one and one-quarter inches and a pressure rating of 2000 psi. The valve features a spring return handle actuator and is suitable for hot and cold water service. The ball material is made of 304 stainless steel which ensures durability in various applications.

• Pressure rating of 2000 psi
• Features a blowout-proof stem
• Includes a vented ball design

Product Highlights

This valve is ideal for HVAC systems and process piping, making it a versatile choice for trade professionals.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923398017

Technical Specifications

• Actuator Type: Spring Return Handle
• Ball Material: 304 Stainless Steel
• Body Material: Carbon Steel
• End Style: FNPT
• Inlet to Outlet Length: 3.6 inches
• Media: Water
• Nominal Size: 1-1/4 inches
• Orifice Size: 1 inch
• Port Type: Conventional
• Pressure Rating: 2000 psi
• Series: TC-580-CSR-25-SR
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees F
• Top to Inlet Center: 2.41 inches
• Trim Material: 1045 Carbon Steel Stem
• Type: 2-Piece
