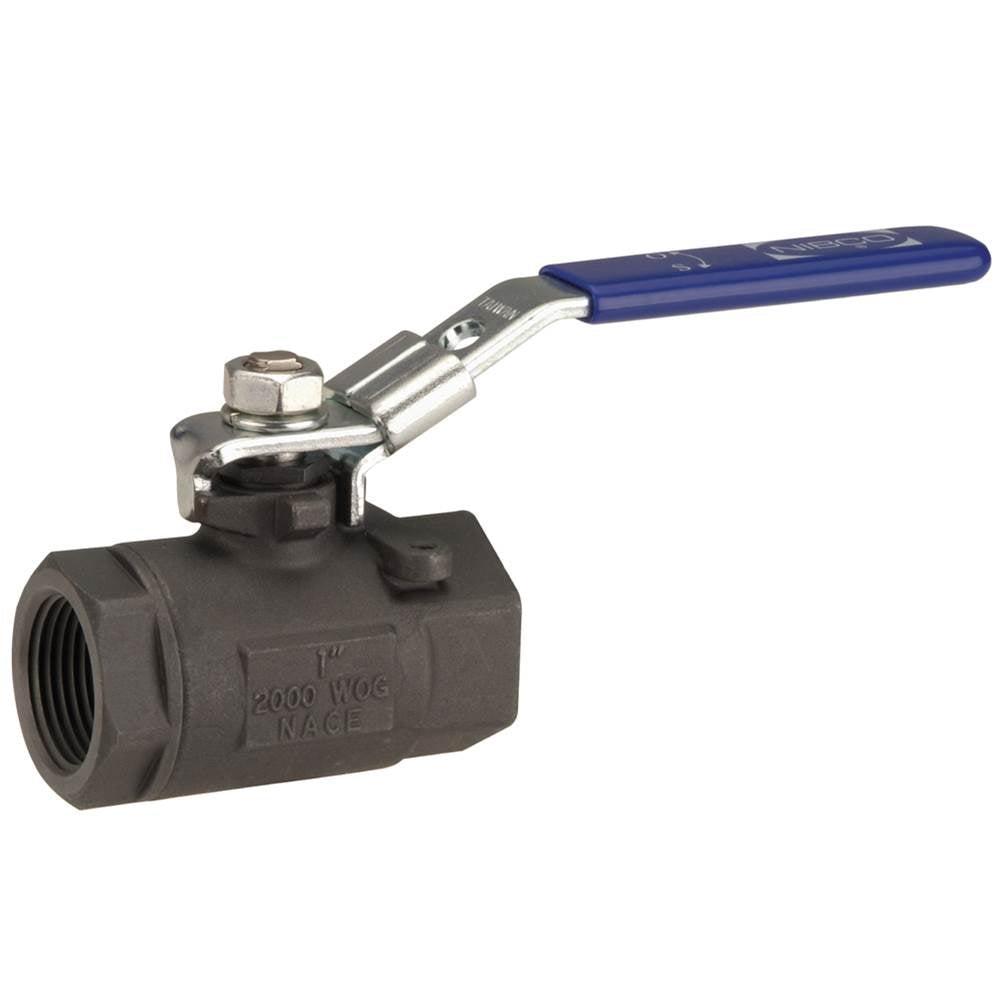

NIBCO INC NL94T0A TC580CSR25LL 1 THD RP BV 2PT MTG LL CS

Product Description

The NIBCO INC NL94T0A is a two-piece ball valve designed for various applications. This valve features a one-inch nominal size and FNPT end style, designed to handle pressures up to 2000 psi and temperatures reaching 400 degrees Fahrenheit.

• Conventional port type and locking lever handle actuator
• Stainless steel ball with a carbon steel body
• Designed for media such as water

Product Highlights

This valve is suitable for process piping, utility service, and some chemical applications. Its robust construction ensures reliability in various settings.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 2-Piece

Technical Specifications

• Nominal Size: 1 in
• Pressure Rating: 2000 psi
• Temperature Rating: 400 deg F
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Orifice Size: 0.87 in
• Inlet to Outlet Length: 3.23 in
• Top to Inlet Center: 2.56 in
• Softgoods Material: PTFE
• Domestic/Import: Import
