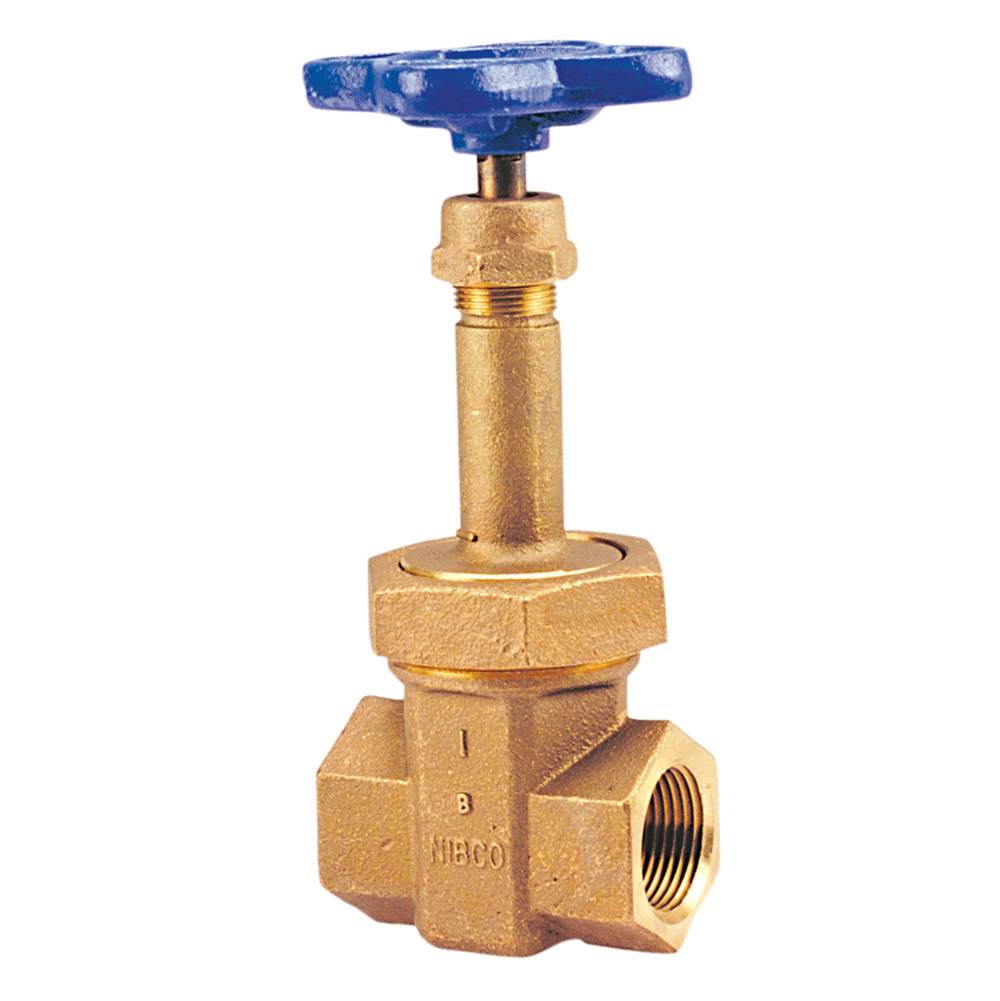

NIBCO INC NL1Z00B T154A 1-1/4 THD 200# RS GATE BRZ

Product Description

NIBCO INC offers the NL1Z00B gate valve in the T154A series for efficient control of water flow. This valve has a nominal size of one and one-fourth inches and is ideal for both commercial and industrial applications. High pressure ratings of up to four hundred psi make it suitable for various utility services.

• Threaded end style for easy installation
• Constructed from bronze with silicon bronze trim
• Handwheel actuator for straightforward operation

Product Highlights

This gate valve is designed for medium to high pressure steam service, along with general utility applications, making it versatile for HVAC systems and other settings.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923620057

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Threaded
• Inlet to Outlet Length: 3.13 inches
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Class: 200 lb
• Pressure Rating: 400 psi
• Series: T-154-A
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 8.88 inches
• Trim Material: Silicon Bronze
• Type: Block Pattern
