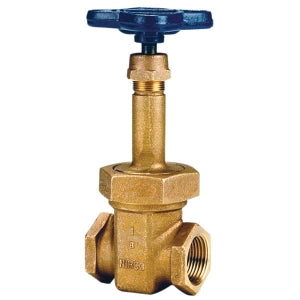

NIBCO INC NL0Z00C T124 1 1/2 THD 125# RS GATE BRZ

Product Description

NIBCO INC NL0Z00C is a T124 gate valve designed for reliable control of air, gas, and water. This valve has a nominal size of one and a half inches with FNPT end style. It supports a maximum pressure rating of 200 psi and is classified under 125 lb pressure class.

• Constructed from durable bronze material.
• Includes a handwheel actuator for ease of operation.
• Suitable for commercial and industrial applications.

Product Highlights

This valve is suitable for HVAC and utility services, capable of handling both hot and cold water and other general media.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923616852

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Silicon Bronze
• Nominal Size: 1-1/2 in
• End Style: FNPT
• Inlet to Outlet Length: 3.33 in
• Top to Inlet Center: 9.81 in
• Media: Air/Gas/Water
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: T-124
• Softgoods Material: Aramid Fiber
