NIBCO INC NL0J0XF T113-LF 3 THD 300 CWP NRS GATE BRZ

Product Description

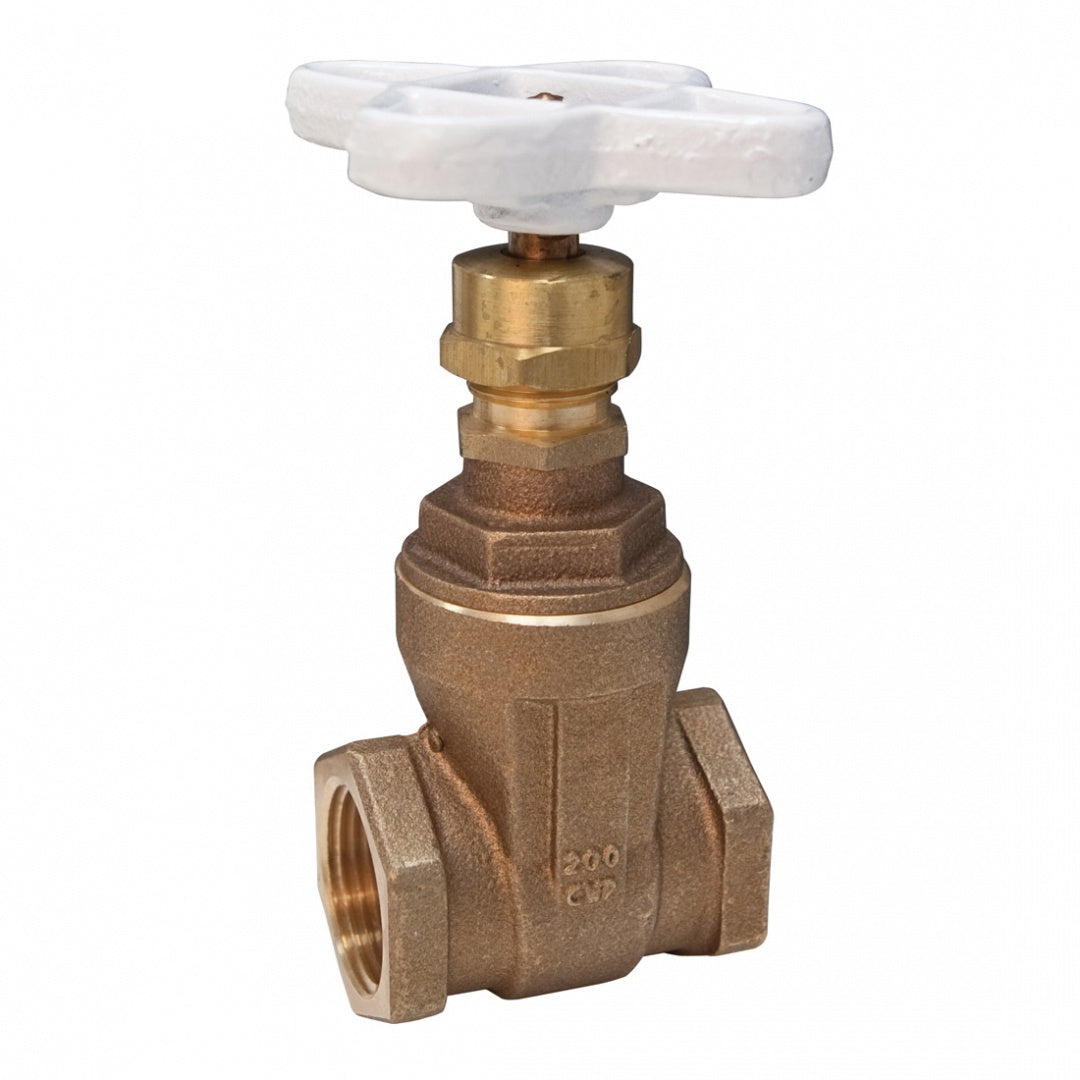

NIBCO INC Gate Valve, MPN NL0J0XF, features a nominal size of three inches and a threaded end style. It is designed to handle a pressure rating of three hundred psi. This gate valve is suitable for water service and constructed with a bronze body and alloy trim.

• Non-rising stem design
• Solid wedge with screw-in bonnet
• Dezincification resistant with a white handle for lead-free identification

Product Highlights

This gate valve is ideal for both commercial and residential construction, conforming to MSS SP-80 standards.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-113-LF

Technical Specifications

• Body Material: Bronze
• Dimensions: Twelve and one-half inches height
• Nominal Size: Three inches
• Pressure Class: One hundred twenty-five pounds
• Pressure Rating: Three hundred psi
• Media: Water
• Temperature Rating: Three hundred degrees Fahrenheit
• Hand Wheel Diameter: Four point twenty-three inches
• Top to Inlet Center: Ten point twenty-four inches
• Inlet to Outlet Length: Four and one-half inches
• Softgoods Material: Aramid Fiber/Graphite
