NIBCO INC NL03L08 T104O 3/4 SCRD UL GATE

Product Description

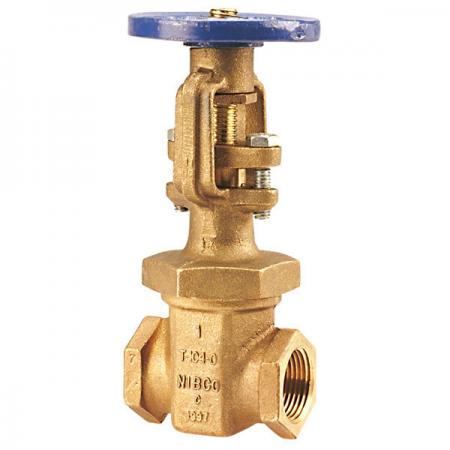

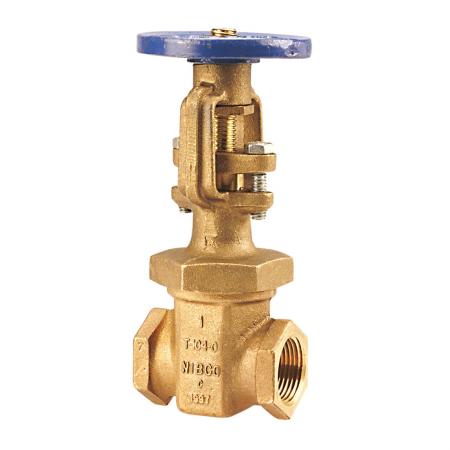

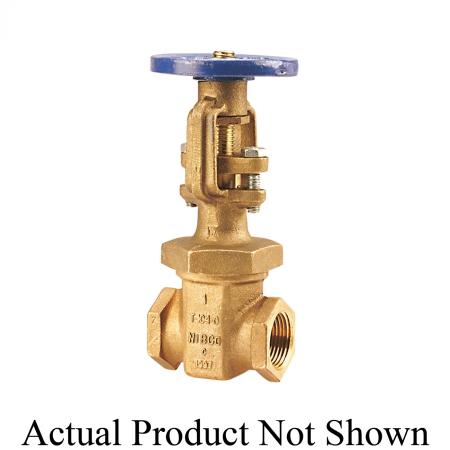

NIBCO INC offers the T104O 3/4 SCRD UL GATE valve with MPN NL03L08. This valve is designed for water media and operates with a handwheel actuator. It is crafted from bronze with silicon bronze trim and graphite soft goods, ensuring durability and resistance against dezincification.

• 3/4 inch nominal size
• Pressure rating of 175 psi
• Standard FNPT end style

Product Highlights

This valve is suitable for automatic sprinkler systems and fire protection applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923611253

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Silicon Bronze
• Softgoods Material: Graphite
• Inlet to Outlet Length: 2.44 inches
• Top to Inlet Center: 6.44 inches
• Pressure Class: 125 lb
• Series: T-104-O
