NIBCO INC NL03L06 T104O 1/2 SCRD UL GATE

Product Description

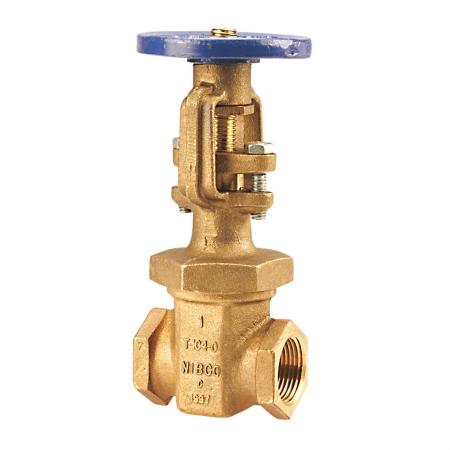

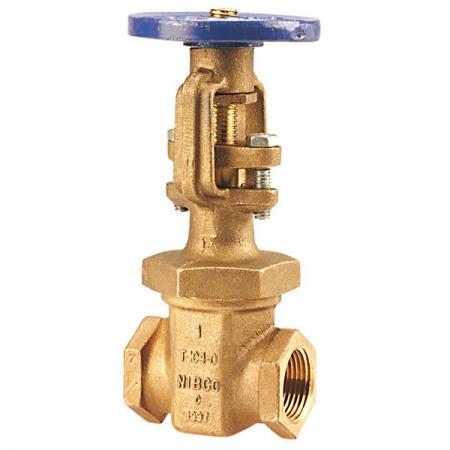

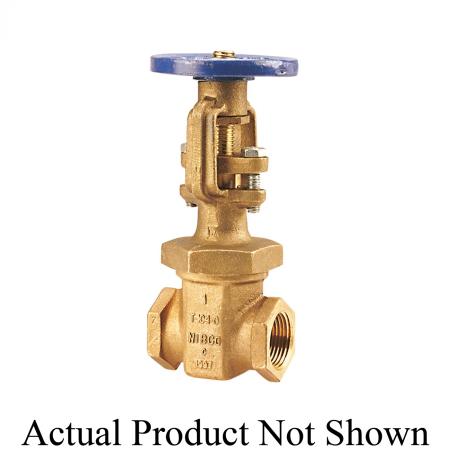

NIBCO INC presents the NL03L06, a T104O series gate valve designed for water applications. This valve features a nominal size of one half inch and a handwheel actuator. It operates at a pressure rating of one hundred seventy-five psi and has a pressure class of one hundred twenty-five lb. The inlet to outlet length measures two point nineteen inches, and the top to inlet center height is five point eighty-eight inches. Made with a bronze body and silicon bronze trim, it is built for durability.

• Rising stem design for reliable operation
• Dezincification resistant materials
• Suitable for automatic sprinkler systems and fire protection

Product Highlights

This NIBCO valve is optimal for various applications in sprinkler and fire systems. Its robust construction ensures long-term reliability.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923611246

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Threaded
• Inlet to Outlet Length: 2.19 inches
• Media: Water
• Nominal Size: 1/2 inch
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Series: T-104-O
• Softgoods Material: Graphite
• Top to Inlet Center: 5.88 inches
• Trim Material: Silicon Bronze
