NIBCO INC NJ83HNA S-585-66-LF-NS 1 SOLDER SS TRIM NIBSEAL

Product Description

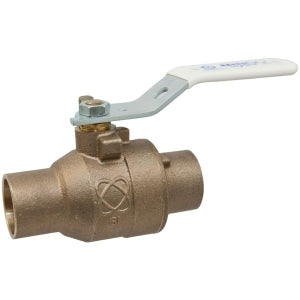

NIBCO INC NJ83HNA is a two-piece ball valve from the HydraPure series. It features a nominal size of one inch and a solder end style. This valve operates efficiently under a maximum pressure rating of 600 psi and can handle temperatures up to three hundred degrees Fahrenheit. Its extended insulated handle actuator provides ease of use.

• Full port design for maximum flow
• Blowout-proof stem for safety
• Lead-free markings for compliance with standards

Product Highlights

This ball valve is ideal for use in applications delivering water for human consumption. It is suitable for both residential and commercial construction.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NJ83HNA

Technical Specifications

• Actuator Type: Extended Insulated Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Nominal Size: 1 in
• Orifice Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi
• Temperature Rating: 300 degrees F
• Trim Material: Stainless Steel Stem
• Series: S-585-66-LF
• Softgoods Material: PTFE
• Inlet to Outlet Length: 3.99 in
• Top to Inlet Center: 2.48 in
