NIBCO INC NJ83HLD S5857066LL 2 W/LOCK HDL

Product Description

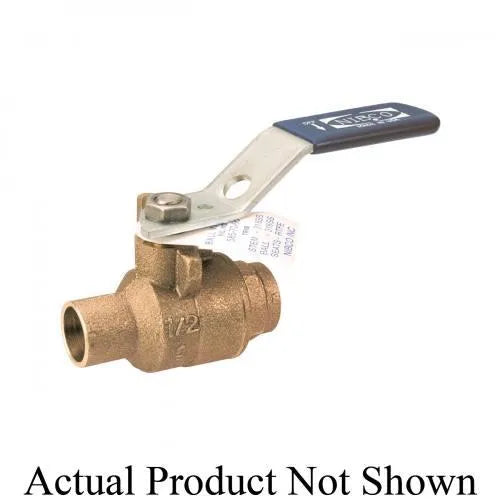

NIBCO INC NJ83HLD is a two-piece ball valve. It features a solder end style and is part of the S-585-70-66 series. This valve is designed for media including air, gas, and water. With a nominal size of two inches, it can handle a pressure rating of six hundred psi and temperature ratings up to four hundred degrees Fahrenheit.

• Full port design for unrestricted flow
• Locking lever handle for secure operation
• Constructed with durable materials to resist corrosion

Product Highlights

This valve is suitable for commercial and light industrial process applications including HVAC and low-pressure steam systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Domestic/Import: Domestic

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: 316 Stainless Steel
• Body Material: Bronze
• End Style: Solder
• Nominal Size: 2 in
• Orifice Size: 2 in
• Pressure Rating: 600 psi
• Series: S-585-70-66
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 6.72 in
• Top to Inlet Center: 3-1/2 in
• Trim Material: 316 Stainless Steel Stem
• Softgoods Material: PTFE
• Port Type: Full
• Media: Air/Gas/Water
