NIBCO INC NJ831LB S58570LL 1-1/4 W/LOCK HDL

Product Description

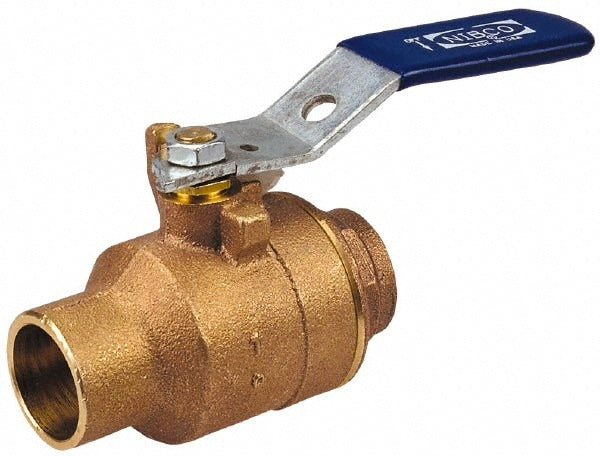

NIBCO INC NJ831LB S58570LL is a 2-piece ball valve made for various applications. It is designed with a locking lever handle actuator and can handle media such as air, gas, and water. The valve has a nominal size of one and one-fourth inches and a full port design, which allows for unimpeded flow. This model has a pressure rating of six hundred psi and a temperature rating of four hundred degrees Fahrenheit, suitable for commercial and light industrial processes.

• Valve pressure rating of six hundred psi.
• Made from polished chrome brass and bronze.
• Dezincification resistant componentry.

Product Highlights

This valve is ideal for HVAC systems, hot and cold domestic water, low-pressure steam, and both LP and natural gas.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: S-585-70

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Polished Chrome Brass
• Body Material: Bronze
• Media: Air/Gas/Water
• Nominal Size: 1-1/4 in
• Orifice Size: 1-1/4 in
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 5.06 in
• Top to Inlet Center: 3 in
• Trim Material: Silicon Bronze Stem
• Softgoods Material: PTFE
• End Style: Solder
• Port Type: Full
