NIBCO INC NJ0J00E S113 2-1/2 CXC 125# NRS GATE BRZ

Product Description

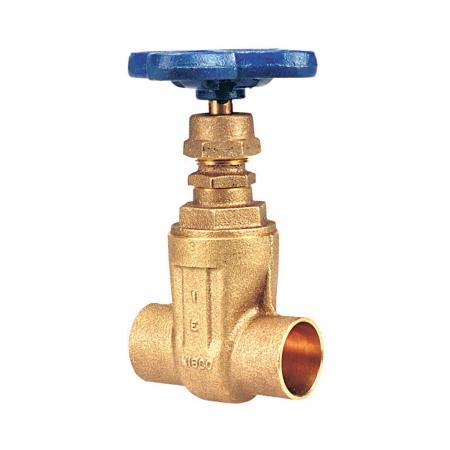

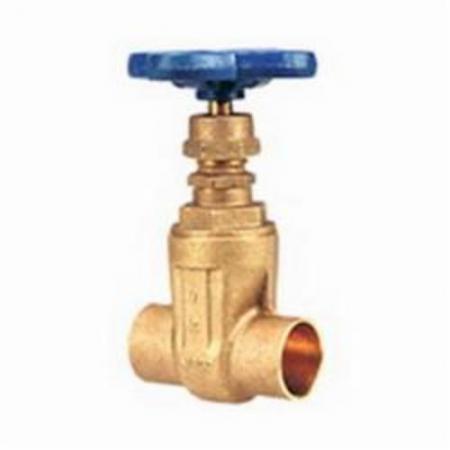

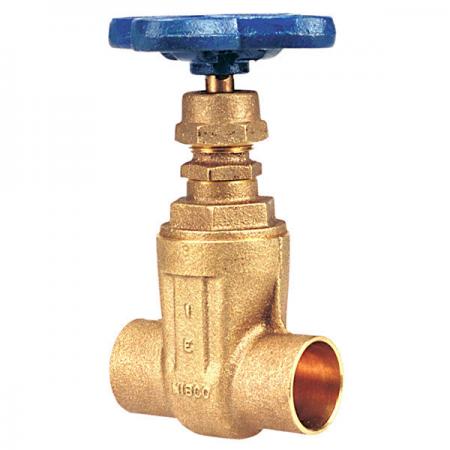

NIBCO INC presents the NJ0J00E gate valve in the S-113 series, with a nominal size of two and one half inches. This valve features a solder end style and is designed for a pressure rating of two hundred psi. It is suitable for air, gas, and water media.

• Handwheel actuator for easy operation
• Dezincification resistant for longevity
• Meets various industrial standards

Product Highlights

The S-113 series gate valve is built for commercial and industrial applications. It is ideal for HVAC systems, steam lines, and general utility services.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923613998

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 4.13 inches
• Media: Air/Gas/Water
• Nominal Size: 2-1/2 inches
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: S-113
• Softgoods Material: Aramid Fiber/Graphite
• Top to Inlet Center: 8.41 inches
• Trim Material: Silicon Bronze
