NIBCO INC NHDX00E F908W 21/2 FLG UL/FM CK CAST IRON

Product Description

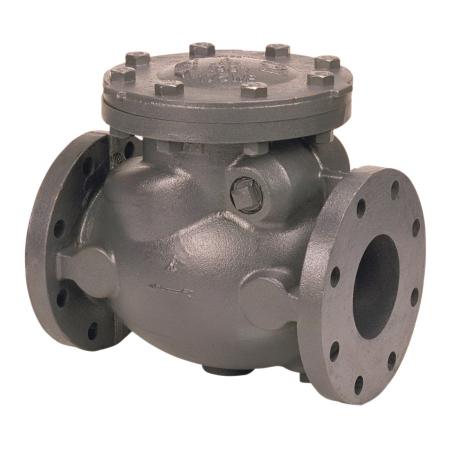

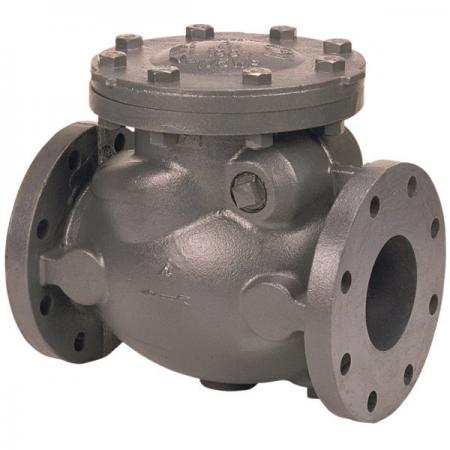

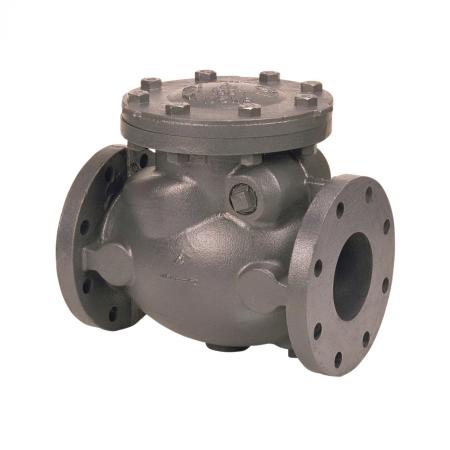

The NIBCO INC NHDX00E is a horizontal swing check valve designed for reliable operation. This model is part of the F-908-W series and features a nominal size of two and a half inches. Constructed from cast iron, it meets ASTM A126 standards and is FM approved. This valve effectively controls the flow of water in various systems, ensuring efficiency and safety.

• Flanged design for easy installation
• Maximum water working pressure of 175 psi
• Renewable seat and disc for maintenance

Product Highlights

This product is ideal for use in commercial, mechanical, fire protection, and industrial applications. Its durable construction ensures longevity and dependability in demanding environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NHDX00E

Technical Specifications

• Body Material: Cast Iron
• Type: Horizontal
• Nominal Size: 2-1/2 in
• End Style: Flanged
• Maximum Pressure: 175 psi
• Media: Water
• Inlet to Outlet Length: 10 in
• Top to Inlet Center: 6.44 in
• Pressure Class: 125 lb
• Specifications Met: ASTM A126 Class B Body, BSA 143-69-SA, FM Approved, cULus/UL/ULC Listed, MSS SP-71
• Softgoods Material: Non-Asbestos/Rubber
