NIBCO INC NH24L0E F607OTS 2-1/2 FLG UL/FM GATE

Product Description

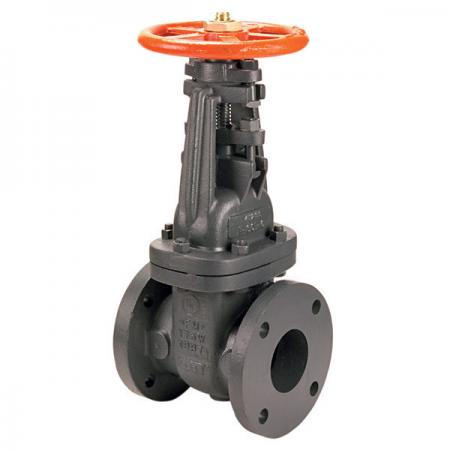

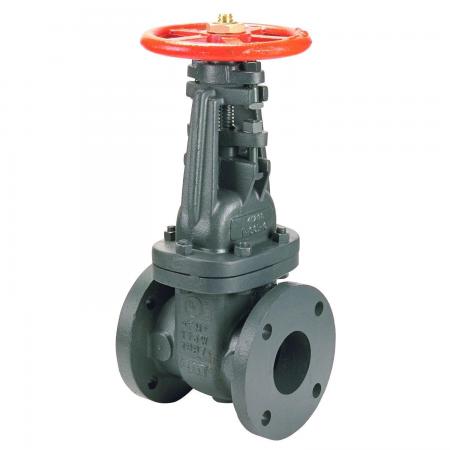

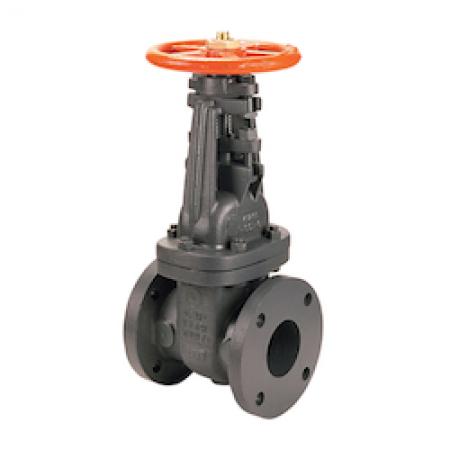

The NIBCO INC NH24L0E F607OTS is a gate valve designed for water applications. This valve has a nominal size of two and one-half inches and is flanged for easy installation. The maximum water working pressure is 175 psi, making it suitable for various high-pressure systems.

• Handwheel actuator for manual operation
• Cast iron body and brass trim for durability
• 125 lb pressure class for reliable performance

Product Highlights

This gate valve is ideal for automatic sprinkler systems and fire protection applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923695185

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• End Style: Flanged
• Inlet to Outlet Length: 7-1/2 inches
• Nominal Size: 2-1/2 inches
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Softgoods Material: Non-Asbestos
• Hand Wheel Diameter: 8 inches
• Top to Inlet Center: 16.88 inches
• Series: F-607-OTS
