NIBCO INC NF99KDA PCFP600ADLF 1 BV PRESS x PRESS DRAIN PN

Product Description

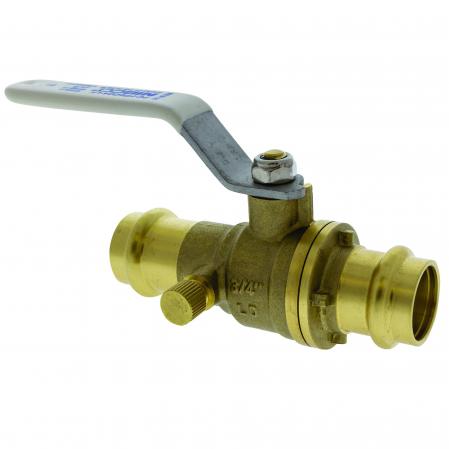

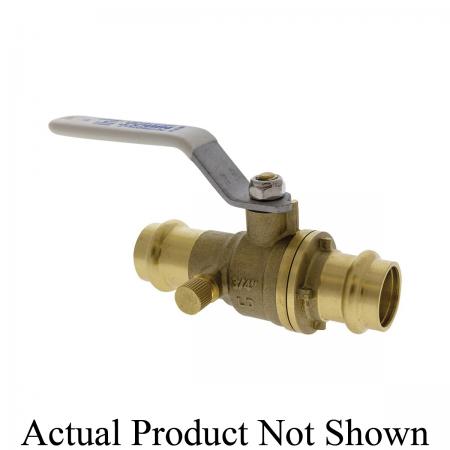

NIBCO INC NF99KDA is a press system ball valve designed for effective flow control in plumbing applications. This valve features a two-piece construction and a quarter-turn operation. It is engineered to handle hot and cold water with a pressure rating of 250 psi.

• Standard lever handle for easy operation
• Full port design for maximum flow
• Dezincification resistant materials

Product Highlights

Ideal for applications involving drinking water and HVAC systems such as condensers and heating, this valve connects to rigid copper tubing in accordance with ASTM B88 standards.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: NF99KDA

Technical Specifications

• Nominal Size: 1 in
• Orifice Size: 0.98 in
• Port Type: Full
• Pressure Rating: 250 psi CWP
• Temperature Rating: 250 deg F
• Dimensions: 6.3 in L x 3.54 in W x 2.36 in H
• Body Material: Forged DZR Brass
• Trim Material: Brass/PTFE
• Softgoods Material: EPDM/PTFE
• End Style: Female Press
