NIBCO INC NF7400C PF413Y 1 1/2 CHECK PTFE DISC W/FEMALE PR

Product Description

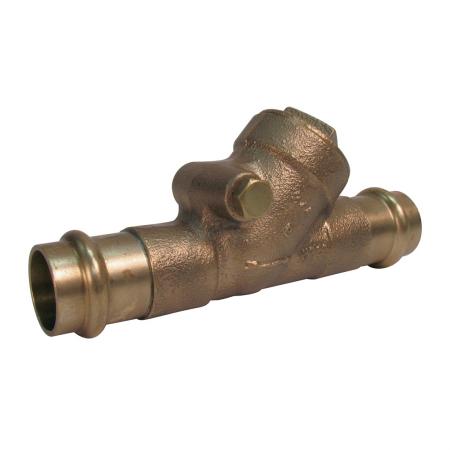

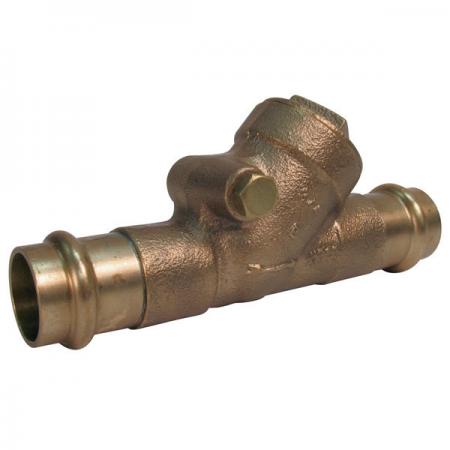

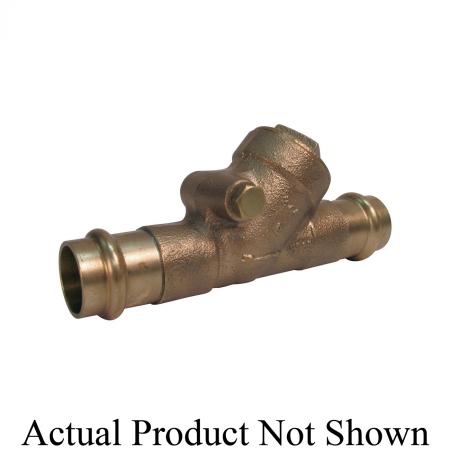

NIBCO INC NF7400C PF413Y is a swing check valve designed for press applications. It features a Y-pattern and is made from a bronze body with EPDM softgoods. The valve operates under a pressure rating of two hundred psi and a temperature rating of two hundred fifty degrees Fahrenheit. Its dimensions include an inlet to outlet length of five point five eight inches and a top to inlet center measurement of two point nine four inches.

• Bronze body with EPDM softgoods
• Pressure rating of 200 psi
• Temperature rating of 250 degrees Fahrenheit

Product Highlights

This valve is suitable for industrial applications, ensuring longevity and reliability in pressurized systems.

Product Information

Standard Information

• Body Material: Bronze
• Domestic/Import: Domestic

Technical Specifications

• End Style: Press x Female Press
• Inlet to Outlet Length: 5.58 inches
• Low Lead Compliance: No
• Nominal Size: 1-1/2 inches
• Pressure Rating: 200 psi
• Series: PF413-Y
• Softgoods Material: EPDM
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 2.94 inches
• Type: Y-Pattern
