NIBCO INC N64X0L6 76-LF 1/2 STOP & WASTE - FEMALE NO LEAD

Product Description

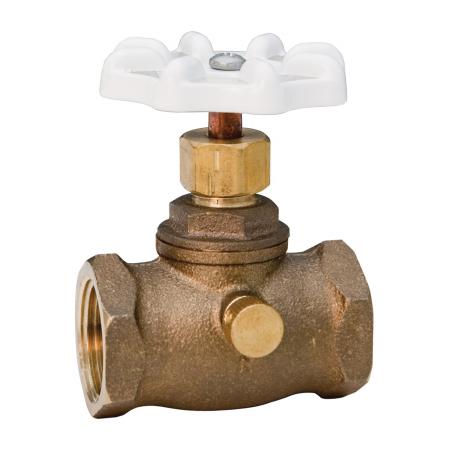

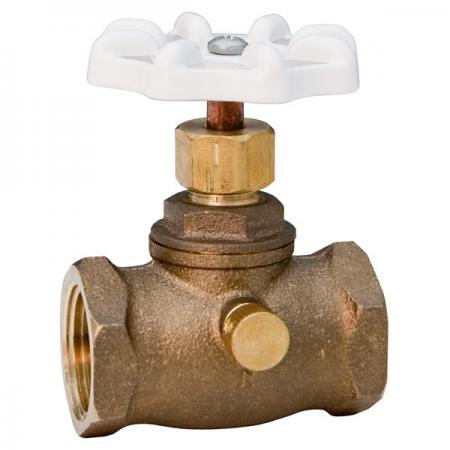

The NIBCO INC N64X0L6 is a stop and waste valve designed for plumbing applications. This valve features a straight pattern multi-turn design and is made from silicon bronze for durability. It has a nominal size of half an inch and is equipped with an FNPT end style, making it easy to fit into existing plumbing systems.

• Handwheel actuator for easy operation
• Softgoods material is made of EPDM
• Pressure rated up to one hundred twenty-five psi

Product Highlights

This valve is suitable for various water media applications. The design allows for quick and efficient operation while maintaining leak-proof performance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: 76-LF

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Silicon Bronze
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 2-3/16 inches
• Media: Water
• Nominal Size: 1/2 inches
• Pressure Rating: 125 psi
• Temperature Rating: 180 degrees Fahrenheit
• Top to Inlet Center: 2-9/16 inches
• Trim Material: Copper Alloy
• Type: Straight Pattern Multi-Turn
