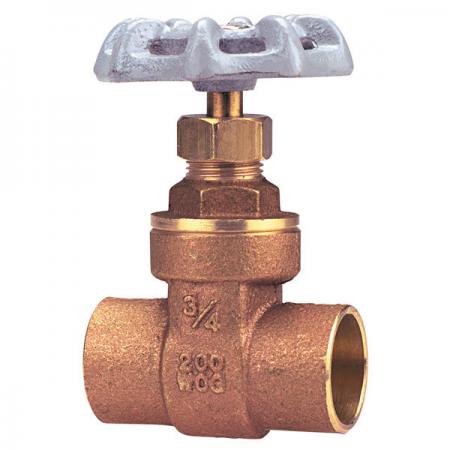

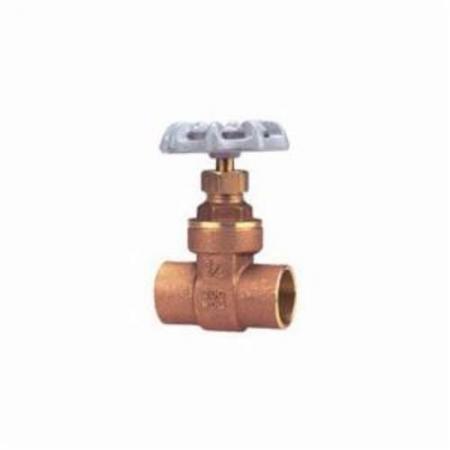

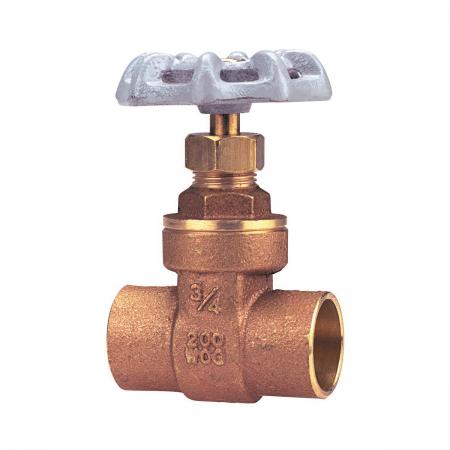

NIBCO INC N00126B SI8 1 1/4 Full Port Gate Valve

Product Description

The NIBCO INC N00126B SI8 gate valve is designed for fluid control in plumbing and irrigation systems. This valve has a nominal size of one and one-fourth inches with a full-port design, allowing for maximum flow. It features a solder end style for easy installation and is rated for a pressure of two hundred psi.

• Manufactured from durable brass with a handwheel actuator
• Designed for various applications, including irrigation
• Complies with industry standards for safety

Product Highlights

This gate valve provides reliable performance in high-pressure applications. Its non-rising stem and graphite/rubber packing ensure minimal leakage and easy operation.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: N00126B

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Solder
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 200 psi
• Softgoods Material: Graphite/Rubber
• Top to Inlet Center: 4.57 in
