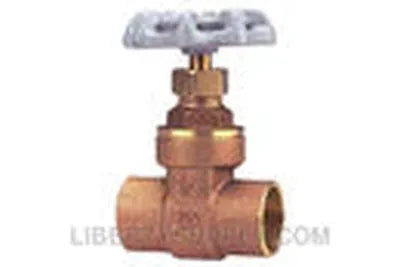

NIBCO INC N001266 SI8 1/2 Full Port Gate Valve

Product Description

The NIBCO INC N001266 is a gate valve from the SI-8 series, designed for efficient fluid control. It features a nominal size of one half inch with a solder end style, suitable for media such as air, gas, and water. This valve operates at a pressure rating of two hundred psi. Equipped with a handwheel actuator, it allows for easy operation and reliable performance. The valve’s total length from inlet to outlet is one point seventy-seven inches, and the top to inlet center measures two point eighty-three inches. The body and trim are made of brass, providing durability and corrosion resistance. The valve's packing uses a graphite and rubber non-asbestos material for effective sealing.

• Full port design for maximum flow
• Non-rising stem for tight space installation
• Fifty-year warranty for reliability

Product Highlights

Reliable gate valve for HVAC, plumbing, and industrial applications. Ideal for water, gas, and air transfer.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: SI-8

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Solder
• Hand Wheel Diameter: 2.13 inches
• Inlet to Outlet Length: 1.77 inches
• Media: Air/Gas/Water
• Nominal Size: 1/2 inch
• Port Type: Full
• Pressure Rating: 200 psi
• Softgoods Material: Graphite/Rubber Non-Asbestos Packing
• Top to Inlet Center: 2.83 inches
• Trim Material: Brass
