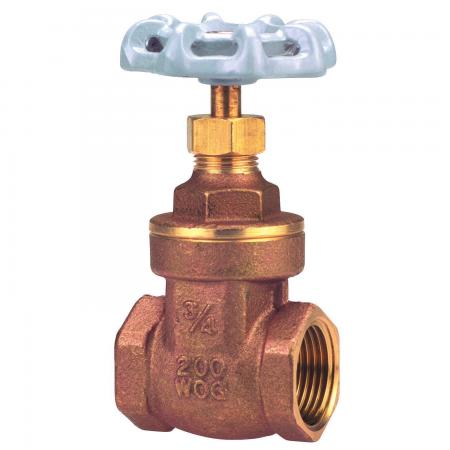

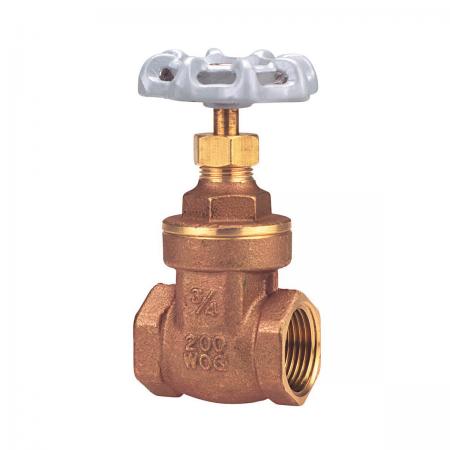

NIBCO INC N001165 TI8 3/8 Full Port Gate Valve

Product Description

NIBCO INC Gate Valve, MPN N001165, is designed for full port applications. The valve is constructed from brass, which ensures durability and reliability in various settings. It is suitable for use in plumbing and heating systems where a reliable shut-off is necessary.

• Brass body and trim
• Conventional port design
• Meets ASTM standards

Product Highlights

This gate valve is designed with a full port and provides low resistance flow, making it ideal for water and other fluids in non-drinking applications. It features a graphite/rubber packing that ensures a tight seal, reducing the potential for leaks.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923608727

Technical Specifications

• Body Material: Brass
• End Style: NPT
• Port Type: Full
• Nominal Size: 3/8 in
• Pressure Rating: 200 psi
• Series: TI-8
• Softgoods Material: Graphite/Rubber
• Hand Wheel Diameter: 2.13 in
• Inlet to Outlet Length: 1.61 in
• Top to Inlet Center: 2.76 in
• Trim Material: Brass
