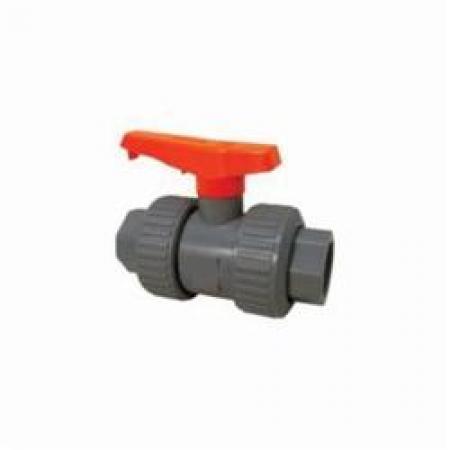

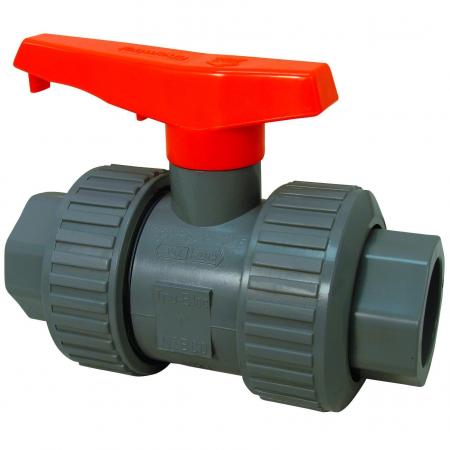

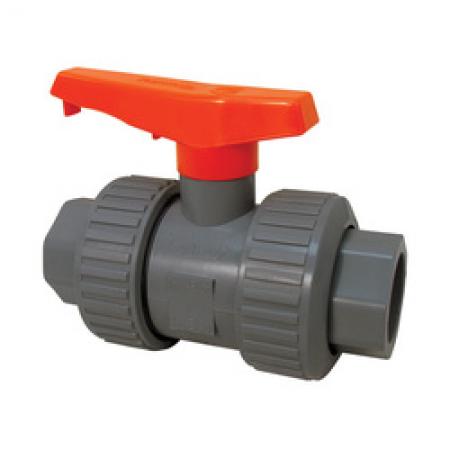

NIBCO INC MA932UC 1-1/2 PVC-EPDM TRUE UNION BALL VALVE

Product Description

The NIBCO INC MA932UC is a 1-1/2 inch PVC-EPDM true union ball valve designed for various piping systems. This valve features a socket x FNPT connection and is rated for a pressure of up to 250 psi at seventy-three degrees Fahrenheit. With a design that accommodates full flow, it is suitable for most water applications.

• True Bloc design enhances performance and reliability.
• EPDM O-rings ensure a tight seal.
• Ergonomic handle provides ease of operation.

Product Highlights

This valve is perfect for applications like chemical processing and chilled water distribution due to its robust materials and construction. It meets ASTM F1970 standards and includes a one-year limited warranty.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923322050

Technical Specifications

• Actuator Type: Ergonomic Handle
• Ball Material: PVC
• Body Material: PVC
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• End Style: Socket x FNPT
• Pressure Rating: 250 psi
• Series: U45TB-E
• Media: Water
• Temperature Rating: 73 deg F
• Inlet to Outlet Length: 10.05 in
• Trim Material: PVC Stem and PTFE Seat
