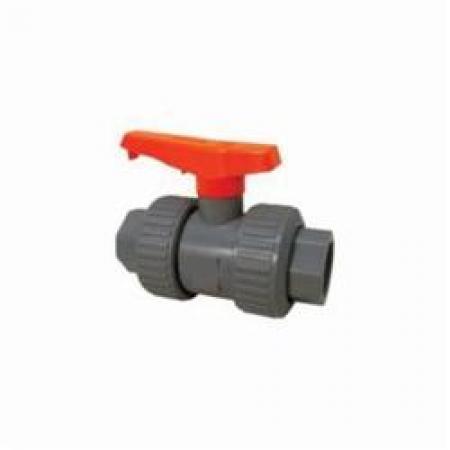

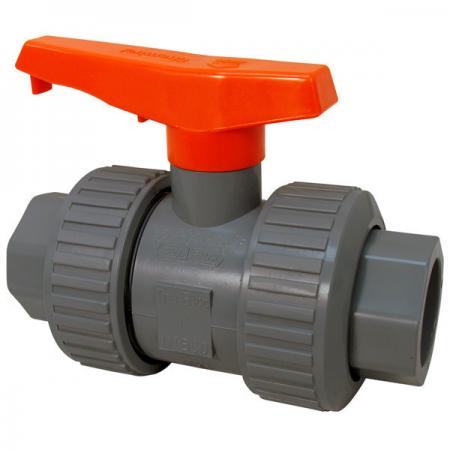

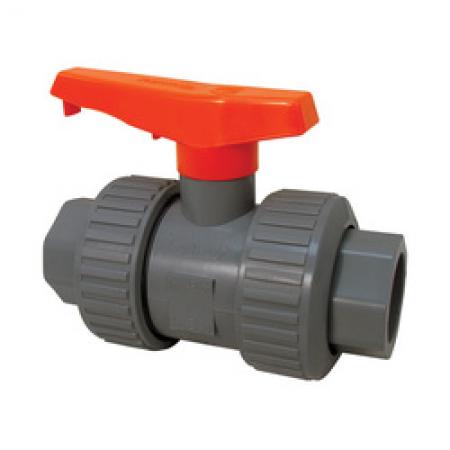

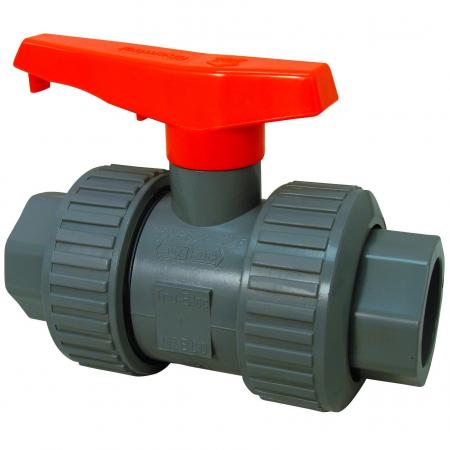

NIBCO INC MA932U6 1/2 PVC-EPDM TRUE UNION BALL VALVE

Product Description

The NIBCO INC MA932U6 is a 1/2 inch PVC-EPDM true union ball valve. This valve excels in applications involving water. It features a socket x FNPT connection and a pressure rating of 250 psi. The full port design allows for maximum flow with minimal pressure drop.

• True union design for easy maintenance
• EPDM O-rings for durability
• Ergonomic handle for ease of operation

Product Highlights

Ideal for industrial plating, chemical drainage, and chilled water distribution.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923241993

Technical Specifications

• Actuator Type: Ergonomic Handle
• Ball Material: PVC
• Body Material: PVC
• End Style: Socket x FNPT
• Inlet to Outlet Length: 4.2 inches
• Media: Water
• Nominal Size: 1/2 inch
• Orifice Size: 1/2 inch
• Port Type: Full
• Pressure Rating: 250 psi
• Series: U45TB-E
• Softgoods Material: FKM
• Temperature Rating: 73 degrees Fahrenheit
• Top to Inlet Center: 2.16 inches
• Trim Material: PVC Stem and PTFE Seat
