NIBCO INC MA817U6 U45BC-E 1/2 TU BALL CK EPDM PVC

Product Description

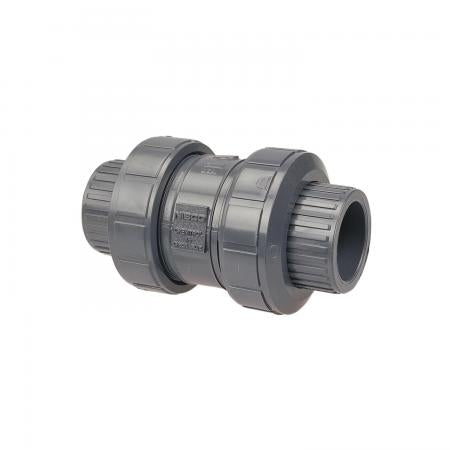

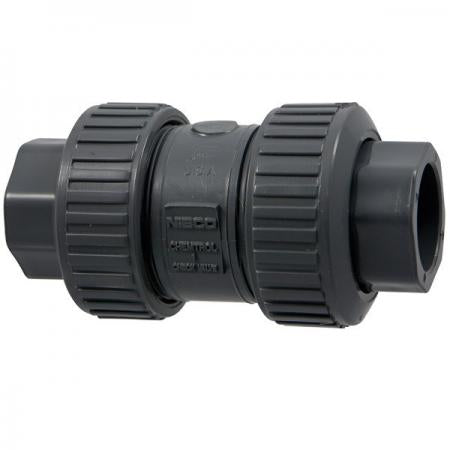

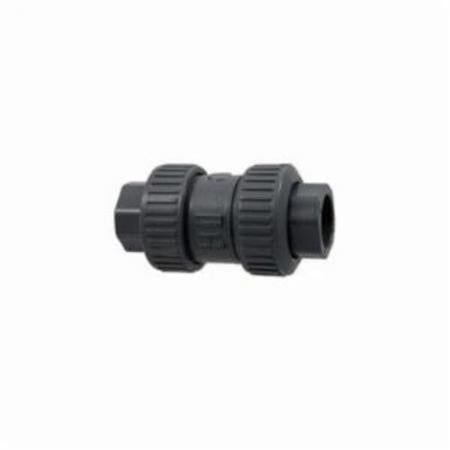

The NIBCO INC MA817U6 is a U45BC-E 1/2 True Union Ball Check Valve designed for reliable performance in various plumbing systems. This valve features a universal end, providing flexibility in installation, while its full port design enhances flow capacity. Constructed with PVC for the body and ball, along with an EPDM softgoods material, it ensures compatibility with water media and withstands a pressure rating of one hundred fifty psi at seventy-three degrees Fahrenheit.

• Designed for use in chilled water distribution and chemical processing environments.
• Full port enables maximum flow with minimal pressure loss.
• Socket x FNPT connection style for easy integration into existing systems.

Product Highlights

This valve is ideal for applications that require a durable and effective check valve solution, including industrial plating and irrigation systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923735324

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Domestic/Import: Domestic
• End Style: Socket x FNPT
• Media: Water
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 150 psi
• Series: U45BC-E
• Softgoods Material: EPDM
• Temperature Rating: 73 deg F
• Type: True Union Universal End
